Enclosures

Safety in laboratory and production environments requires separating furniture. Enclosures offer effective protection against heat, gases, smoke, and noise emissions, creating separated, protected zones. Their size is variable, extending to room-in-room systems.

Safety for our users

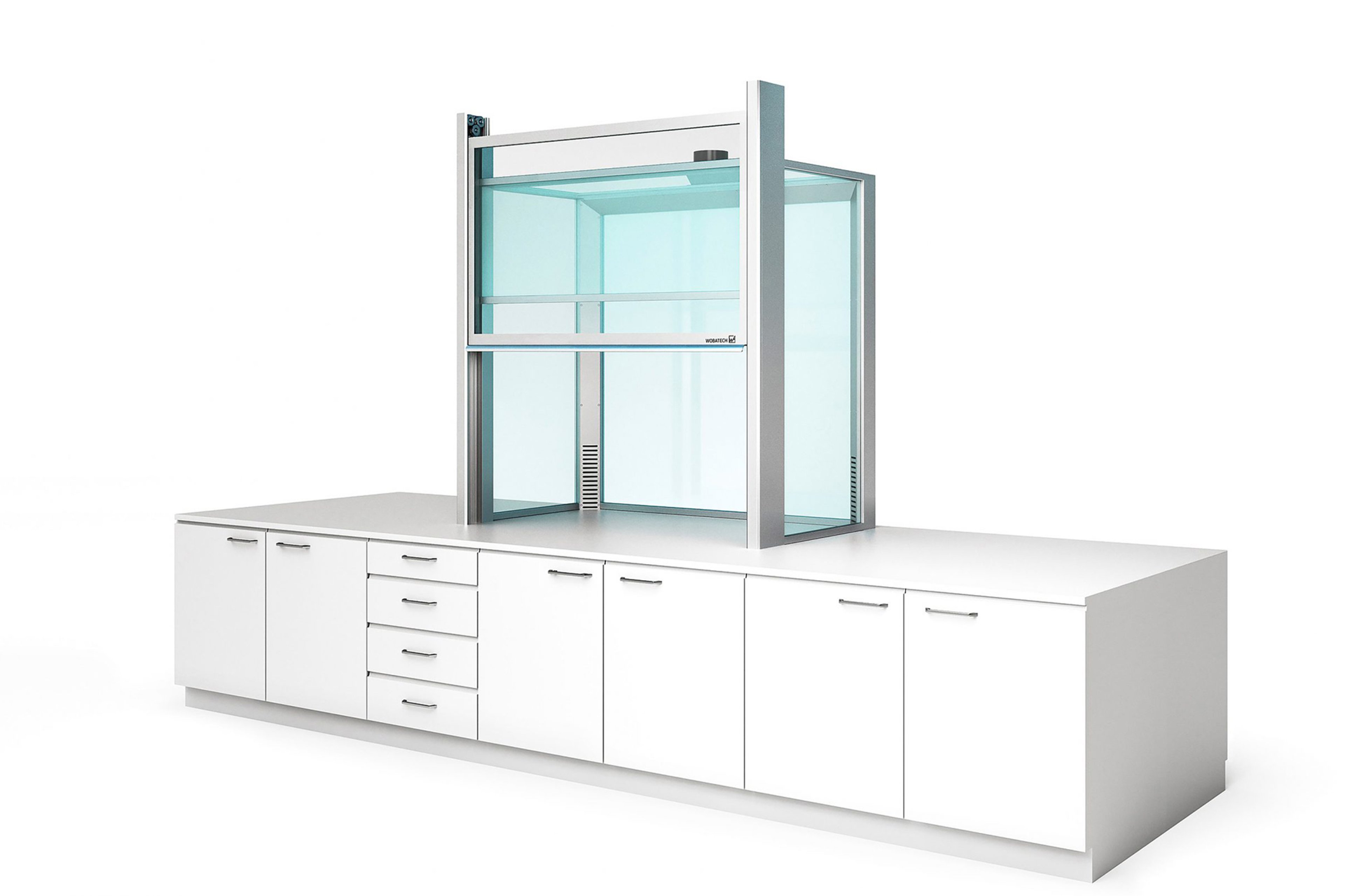

Table and large enclosures are individually adapted solutions specifically designed for safety needs in laboratory and production environments. They offer effective protection against heat, gases, smoke, and noise emissions. They create a separated and protected zone. For large enclosures, we call it a room-in-room.

Description

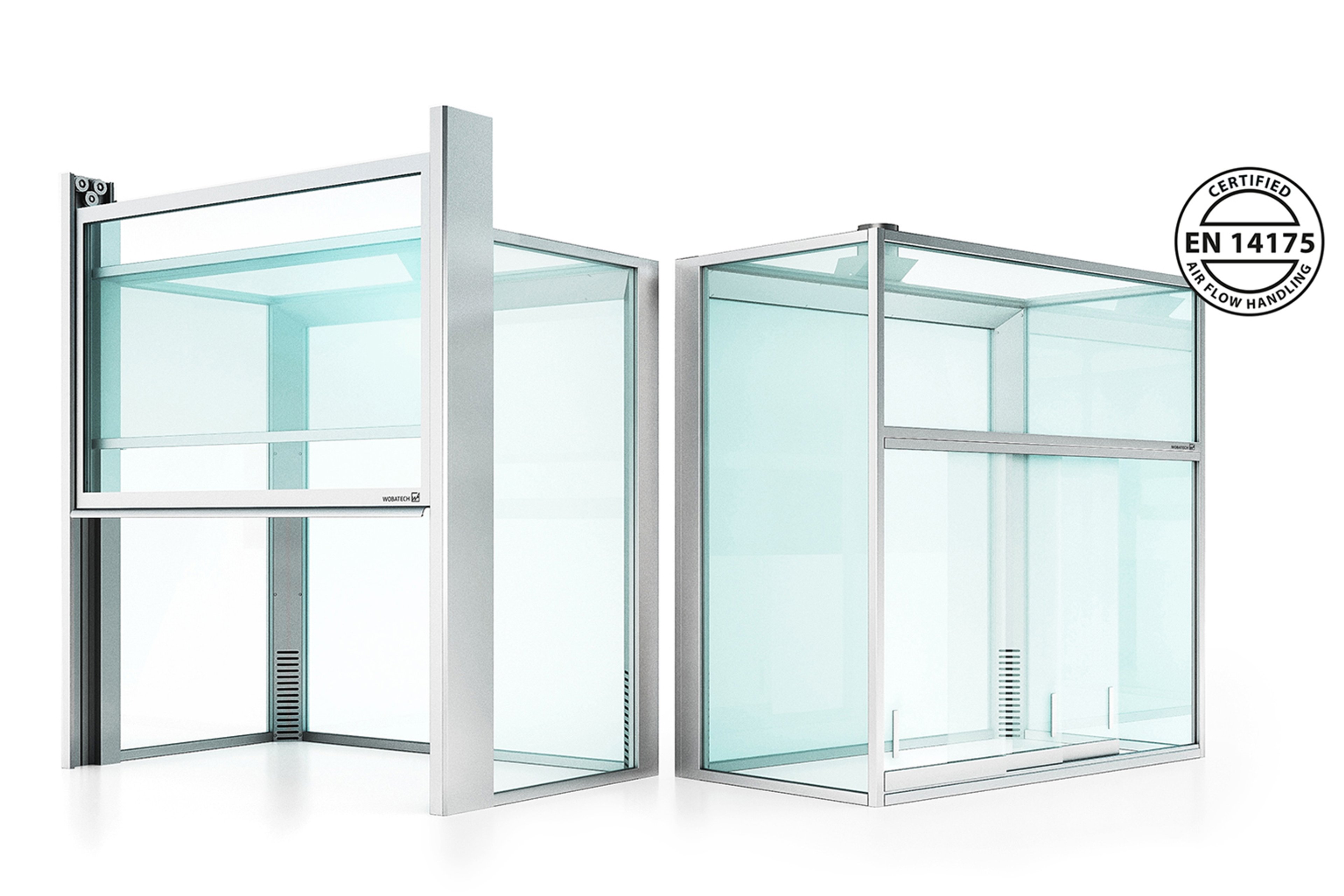

We focus on safety in laboratory and production environments. Our enclosures are used for the extraction of heat, gases, and smoke, as well as for reducing noise emissions. We offer a wide range of models and dimensions – from small to large: stationary table enclosures, walk-in large enclosures, and even complete room-in-room solutions. This allows for the creation of separated and protected zones. EN-certified enclosures or stationary spot extractions are also possible. The integration of media carriers can be implemented without problems.

We help you find the right dimensions, integrations, and materials for your application. Our enclosures can be combined with different front sliders: horizontal or vertical, automatic or manual.

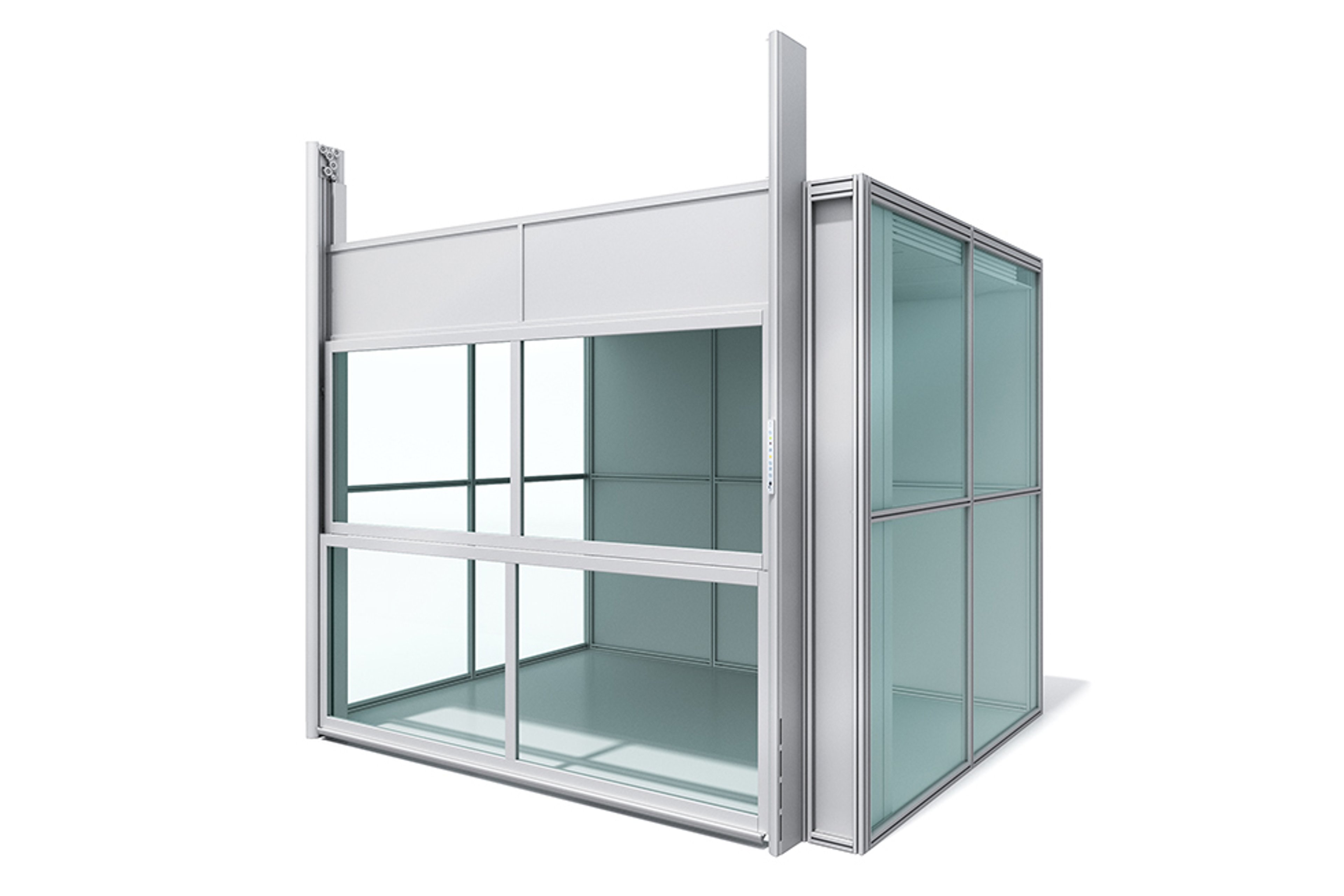

Product Features – Large Enclosures

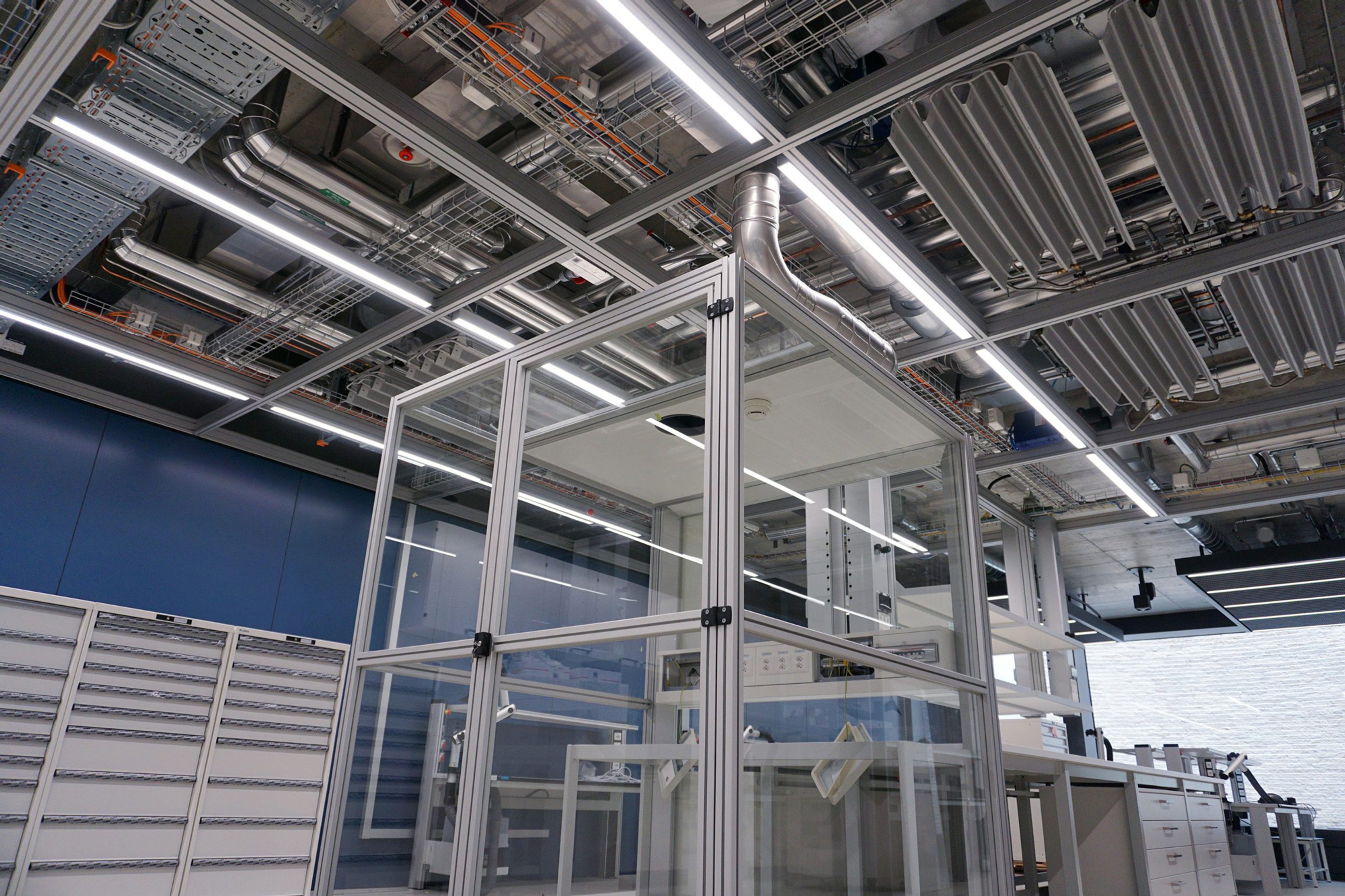

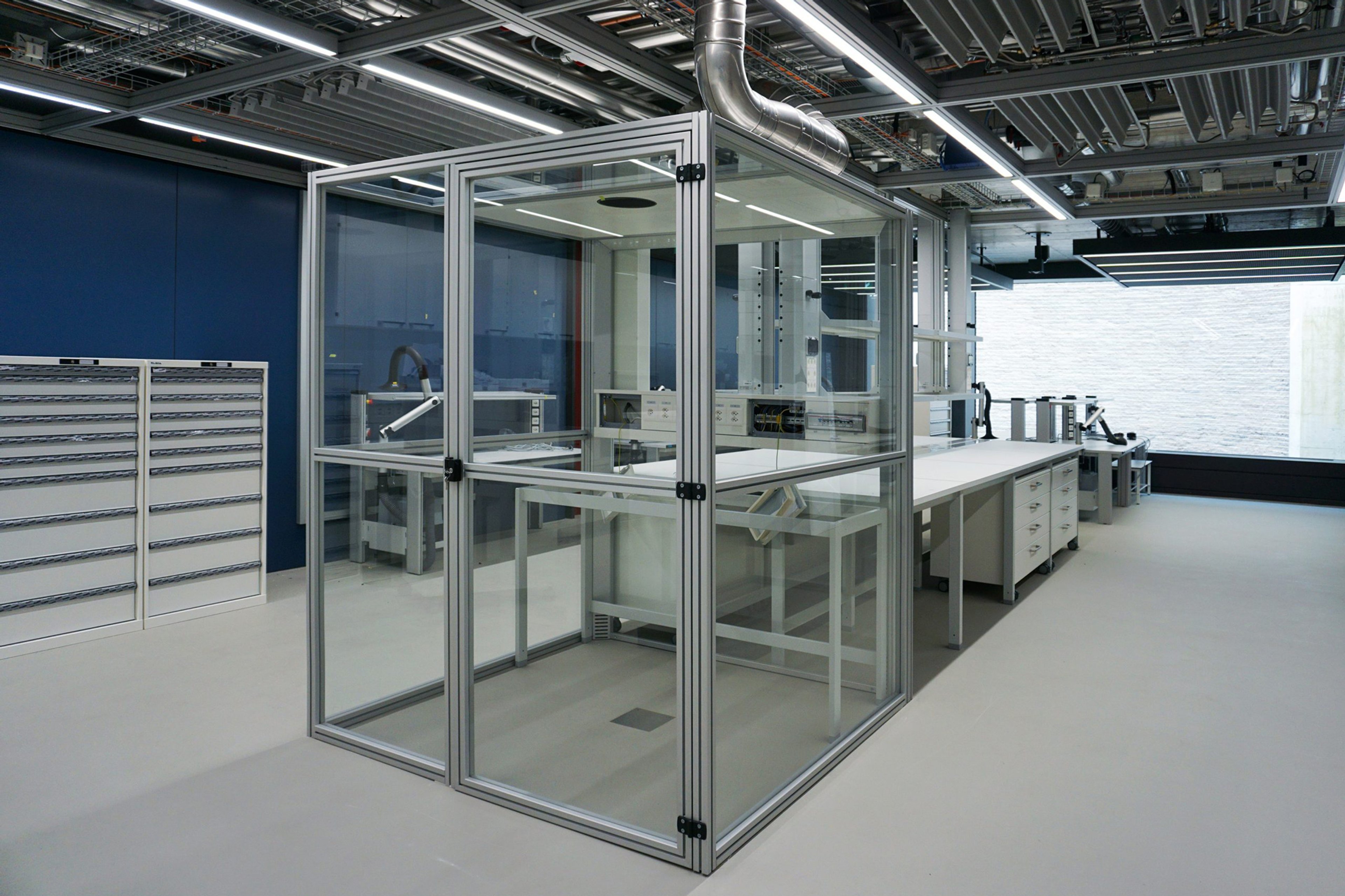

The large enclosure is used wherever systems and workplaces need to be protected by an economical and practical solution. It meets the highest requirements for separating and protecting workplaces and production areas. For permanently safe access, WOBATECH sliding doors can be used, which are optimally designed for industrial use.

Application

The large enclosure allows for optimal use of space by creating separated and protected zones. Integration and access are determined by the customer via the smooth-running sliding door system. The system offers a spacious, light construction that can be optimally supplemented with WOBATECH components in the interior.

Construction

Height, width, depth variable
Number of levels variable
Integration with sliding doors, horizontal or vertical, division according to construction size

Filling Surfaces

Standard Material

Single-pane safety glass (ESG)
Laminated safety glass (VSG)
HPL solid core panel white (Argolite ©, chemical resistant)

Material on request

Alucobond (plus/A2)
Coated particle boards (chipboard)
Covered particle boards (chipboard)
CDF (chemical resistant)
Acrylic glass (PMMA)
Polyethylene terephthalate (PET-G) transparent
Polycarbonate (PC)
Sheet metal sandwich with rock wool
Insulation composite panel
Forex white

Options for surface elements

Standard colors white RAL 9010, 9016, special colors according to NCS/RAL possible
Special coatings on request (screen printing, etchings)

Installation

Installation is carried out by our own assembly team. The construction is based on the proven WOBATECH connection system with expansion options.

Fastening

The large enclosures are installed and anchored as a room-in-room solution or as an extension directly on the wall, floor, or ceiling.

Data Sheet Large Enclosure

Product Features – Mobile Enclosures

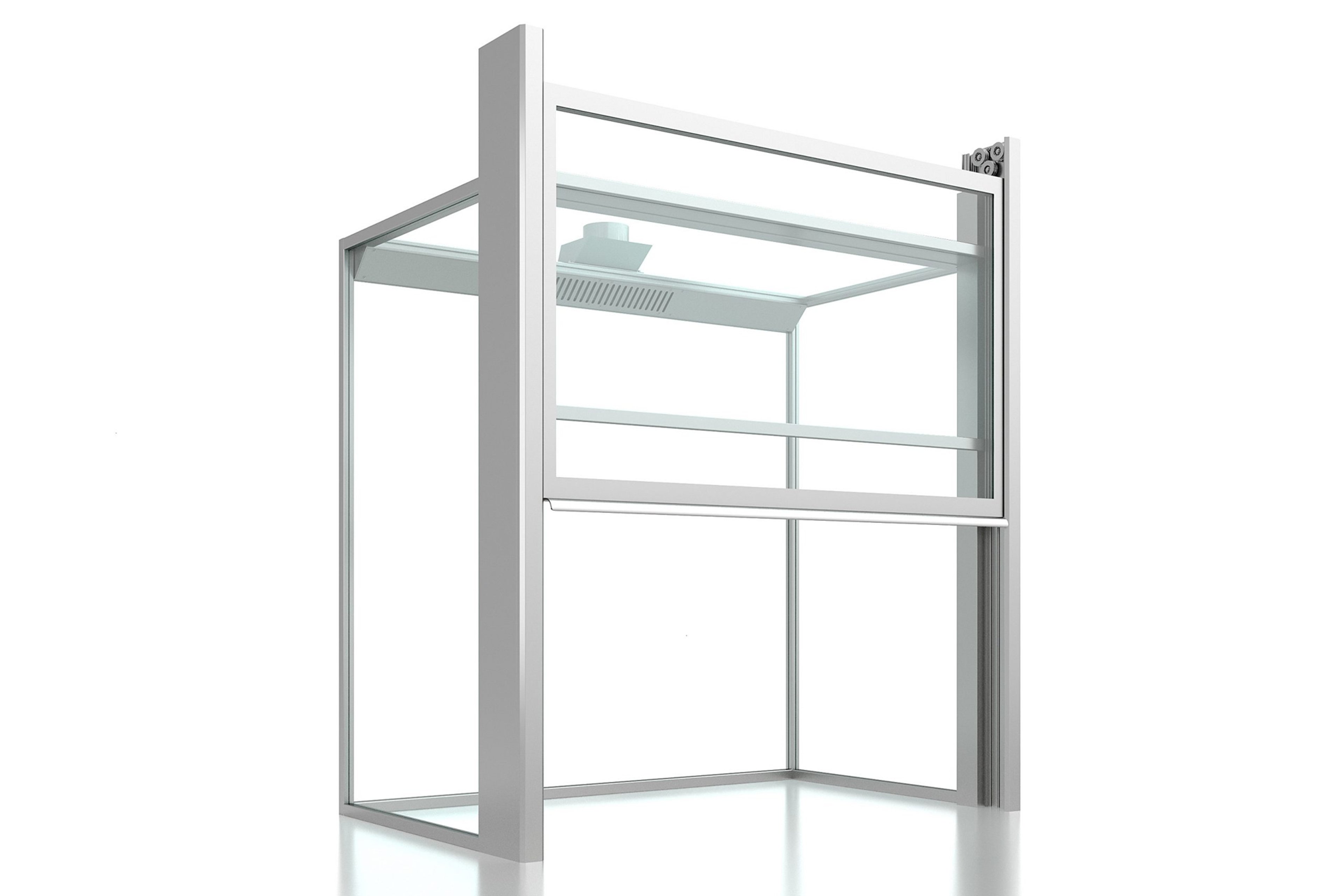

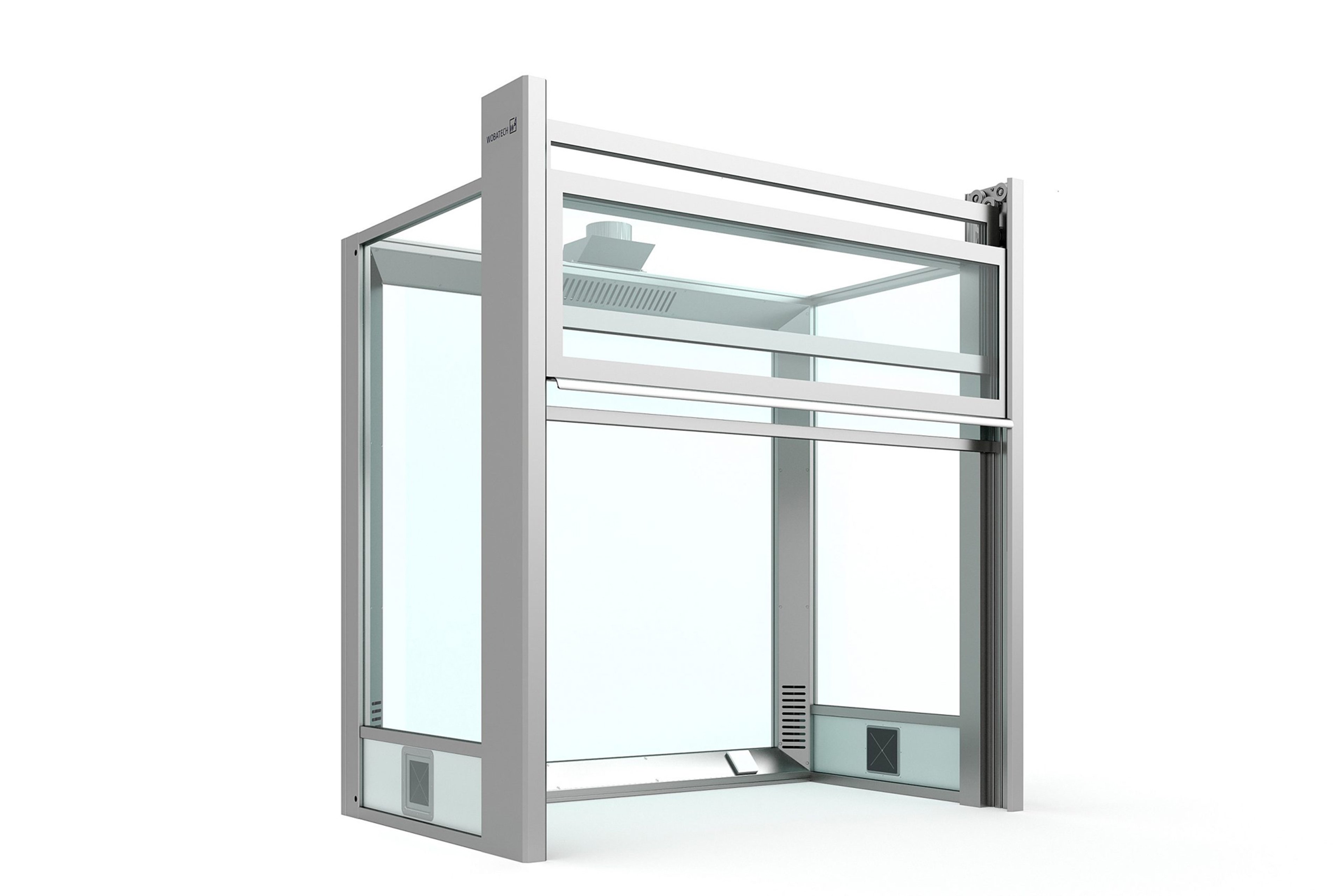

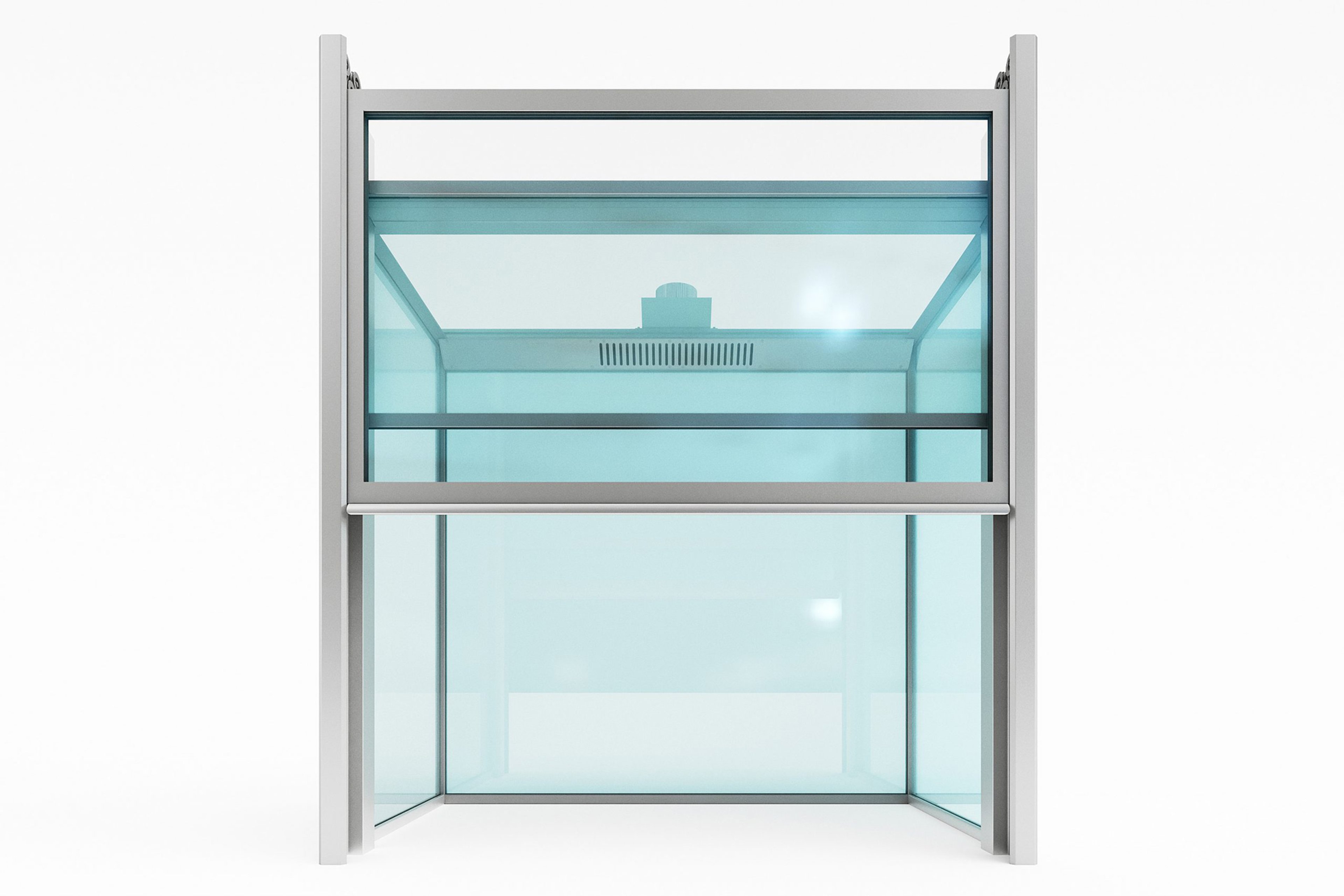

The enclosure allows for optimal utilization of workplaces in laboratory and industrial areas. It serves to ensure controlled, protected areas for the extraction of gases, vapors, dusts, and heat. The basic construction is made of aluminum profiles and glazed on all sides. Openings can be realized in horizontal or vertical design. Multiple enclosures can be connected and combined.

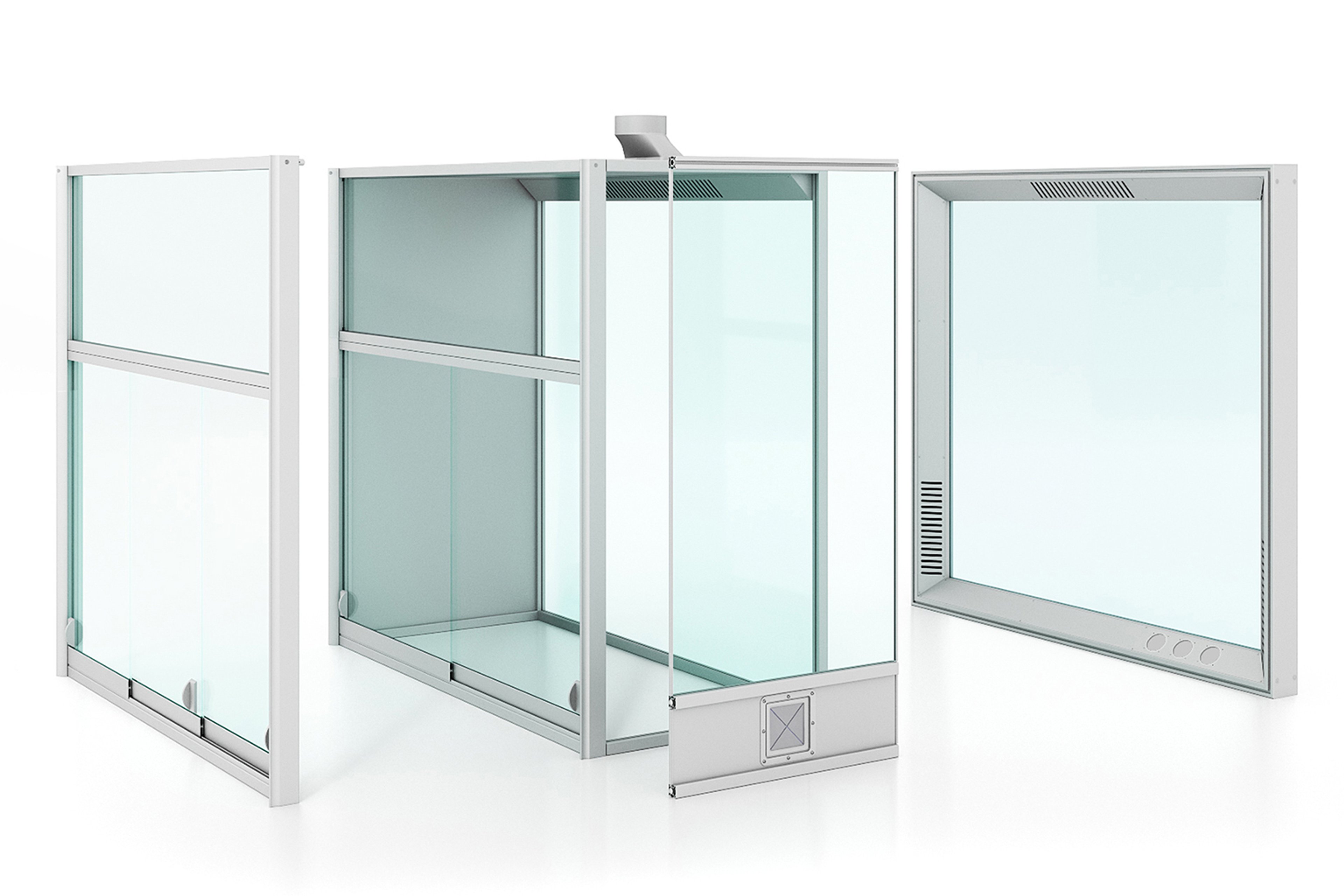

Construction Variants

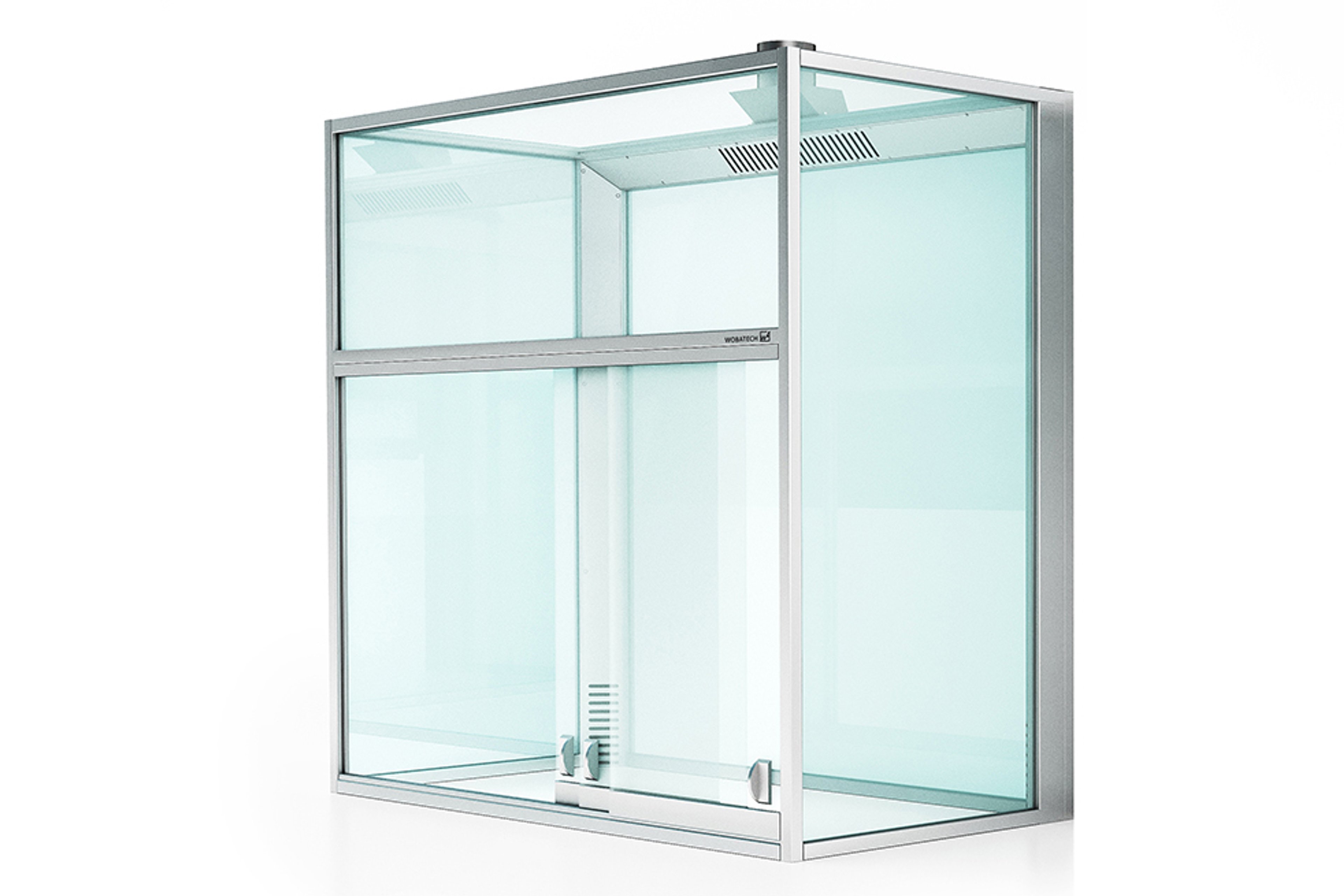

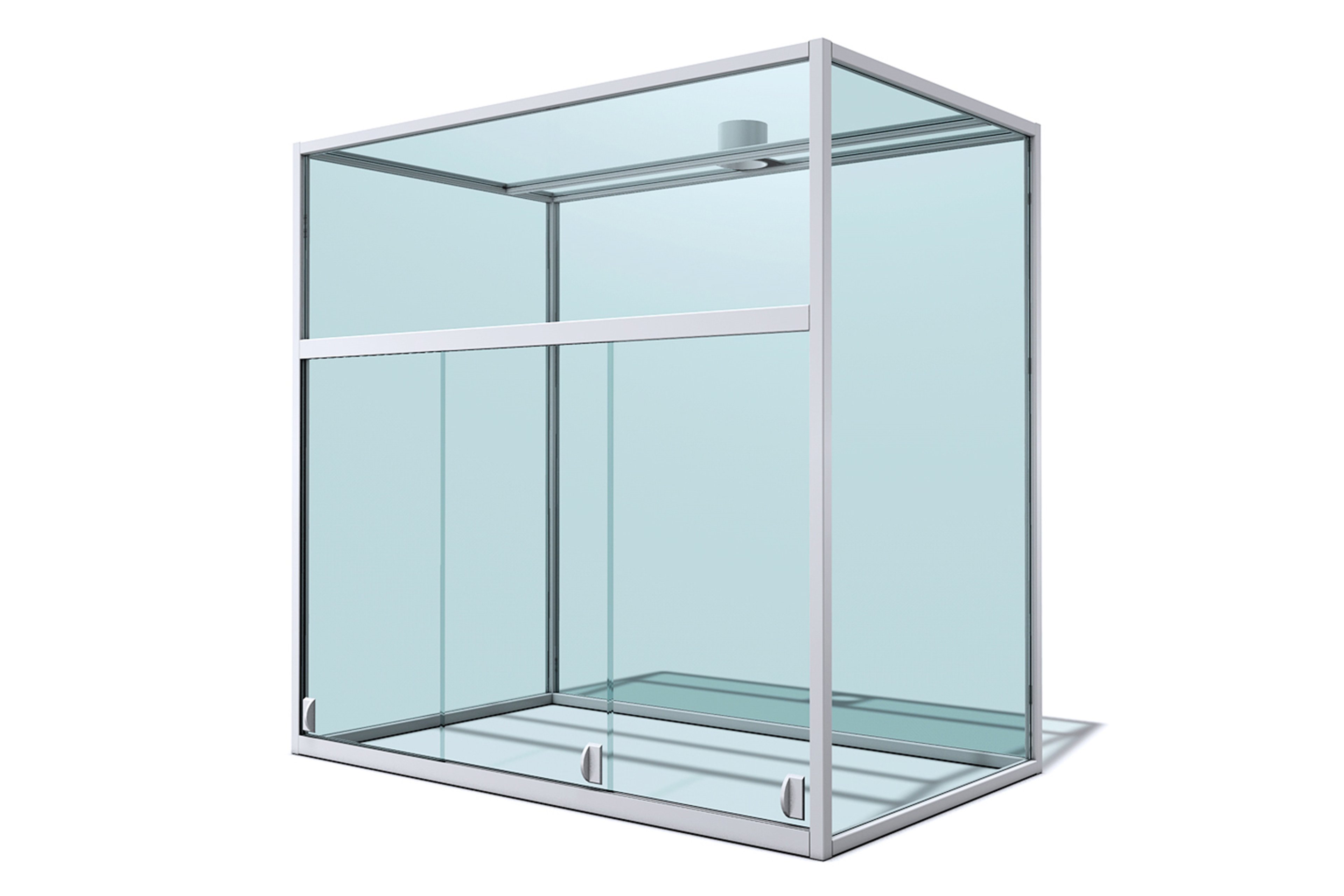

Available in vertical and horizontal slider versions.

Options

Exhaust air duct at the top
Side exhaust air duct for heavy gases
Electrical duct
Exhaust air diameter selectable 125/ 150/ 250 mm
with cable gland/access openings on the side or rear (simple version up to iris diaphragms)
Lighting integrable
