Infrastructure Carrier Unit
The central system element of our modular product portfolio is the infrastructure carrier unit. It combines a wide variety of components and media into a holistic system. Everything complex is tidied up, with fewer interfaces for optimized space economy.
Description

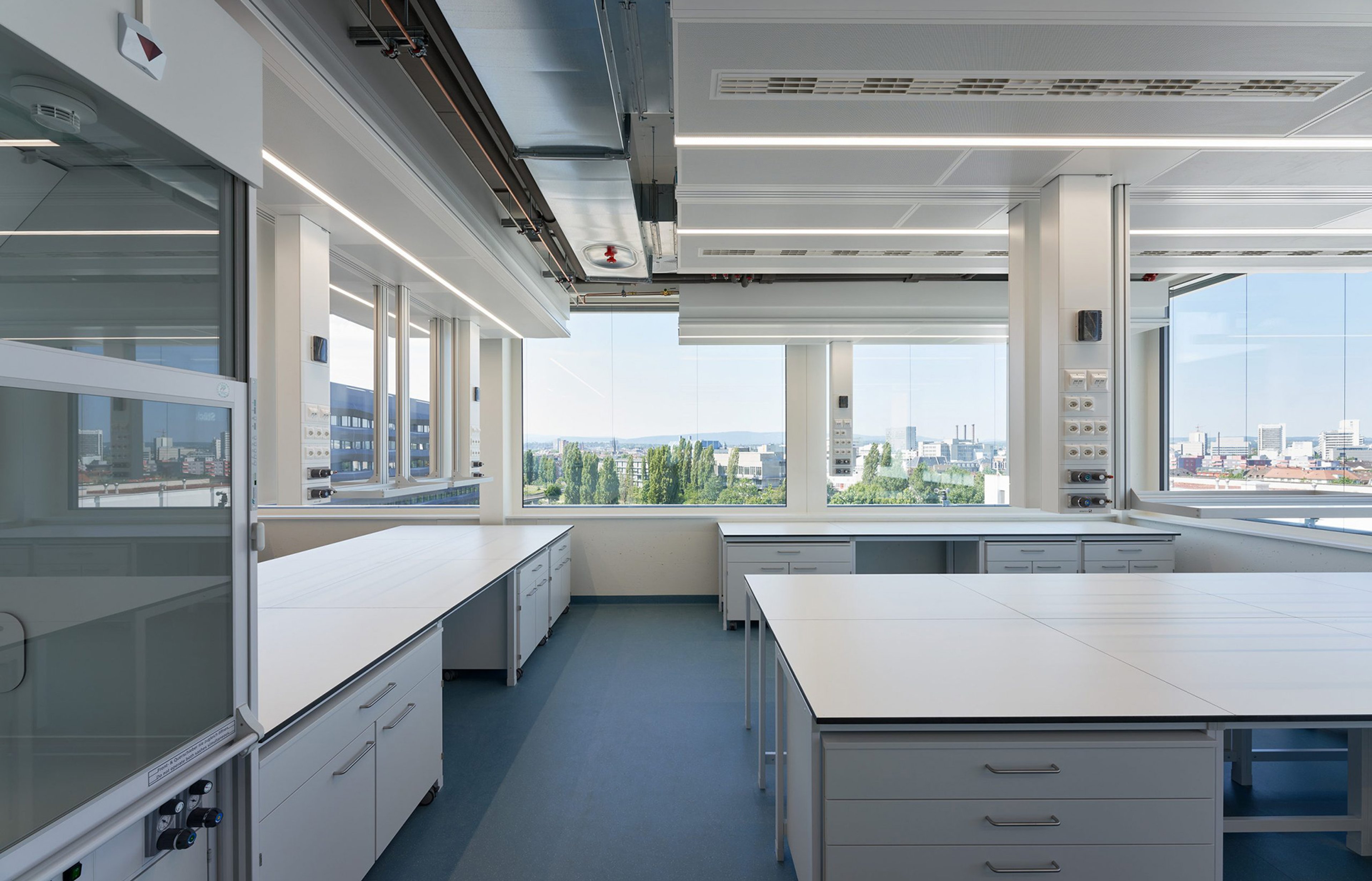

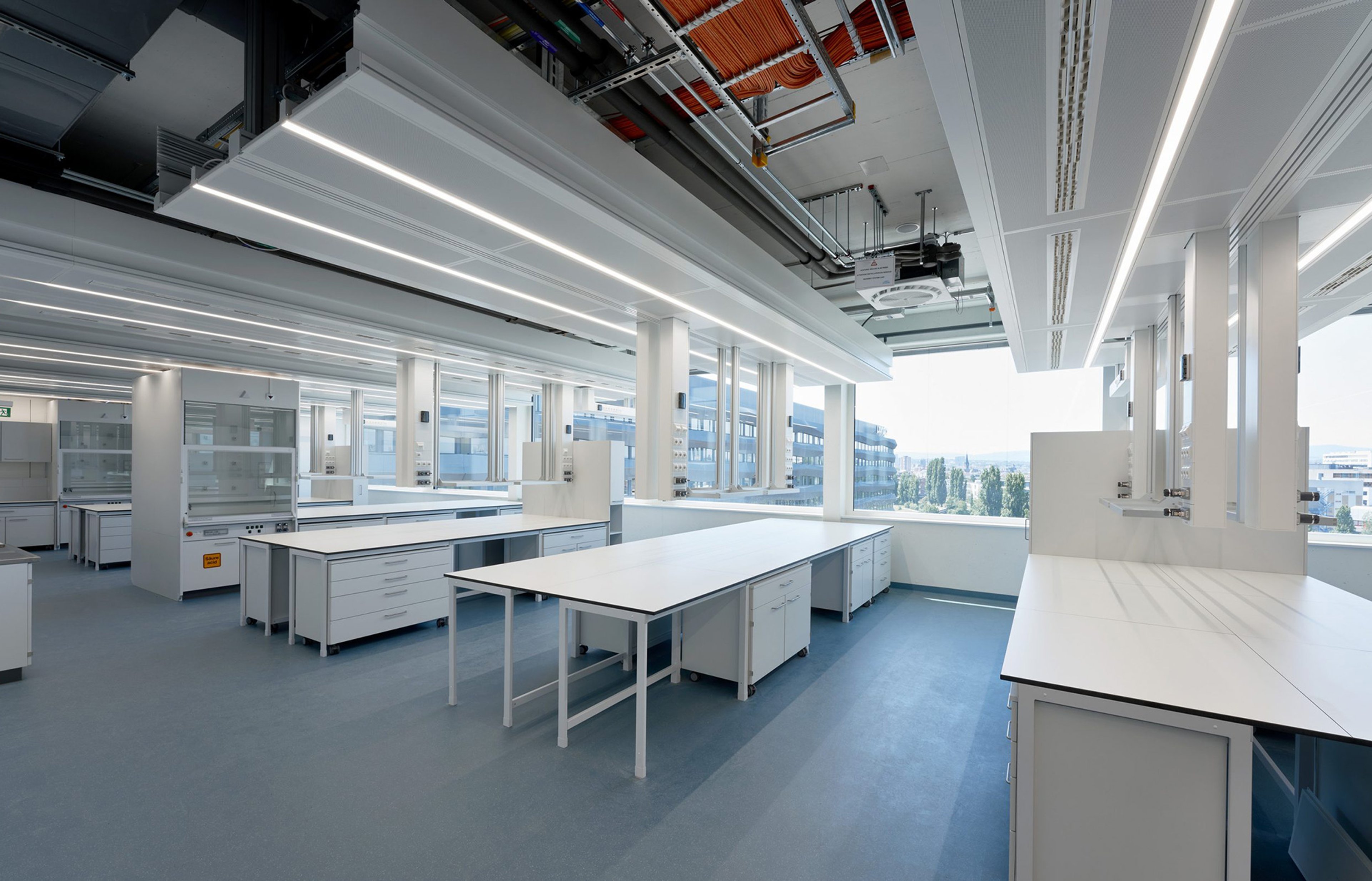

The infrastructure carrier unit is a system carrier mounted on the ceiling by the client. It combines ventilation and control components, electrical and sanitary installations, lighting, and other media into one product. Additional attachment elements such as media carriers, shelves, spot extractions, and monitor mounts modularly extend the system. The installation of partition walls as well as blackout and laser protection curtains is also possible.

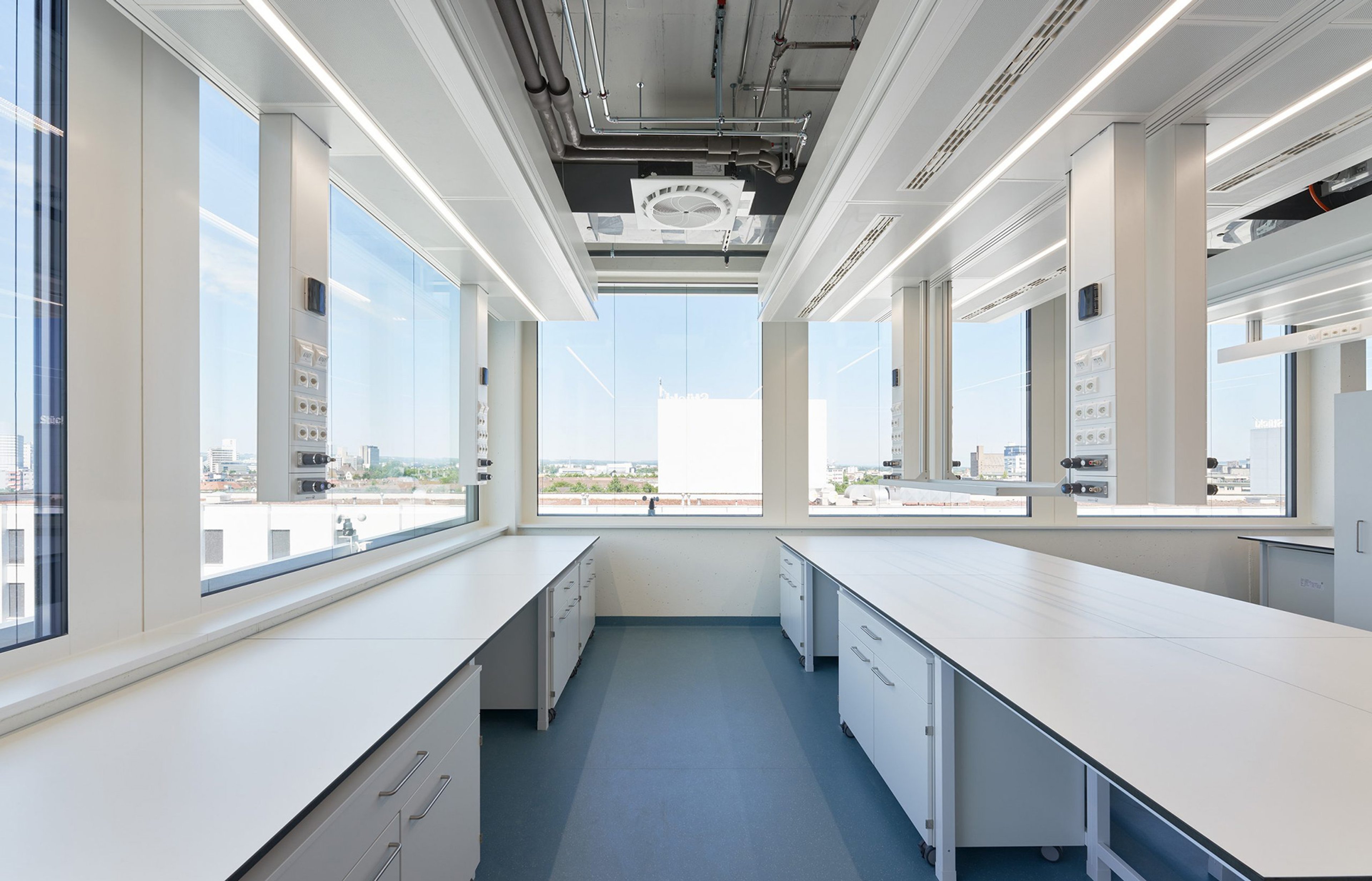

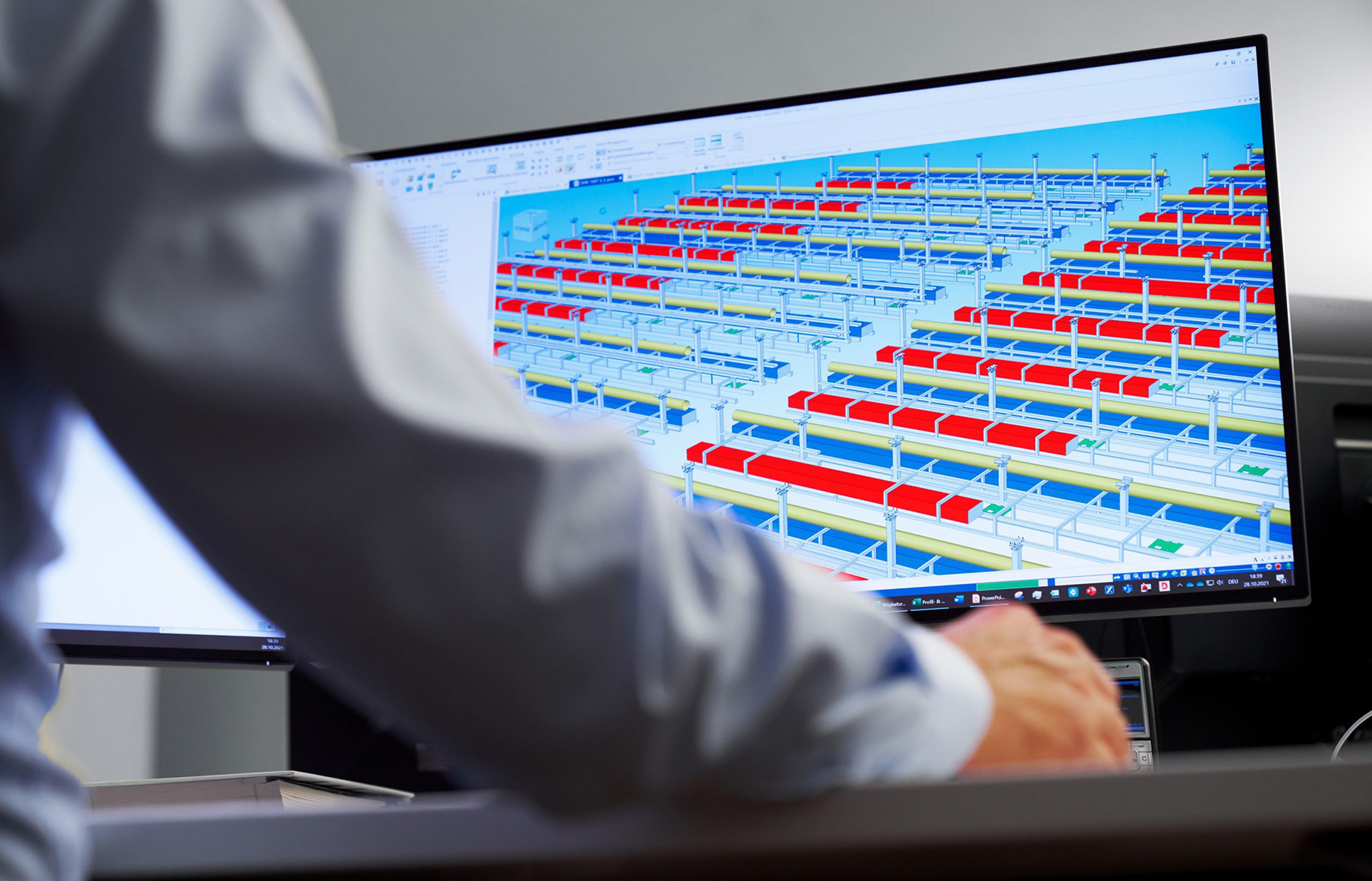

Thus, our infrastructure carrier unit meets the demands of a complete laboratory infrastructure and can be used in any room concept due to its high-quality, modern design. It provides you with the necessary freedom to flexibly redesign your rooms and their infrastructure at any time. The infrastructure carrier unit is the further development of the ceiling grid to meet the requirements of modern construction methods with BIM, pre-assembly, and BIM-to-Field.

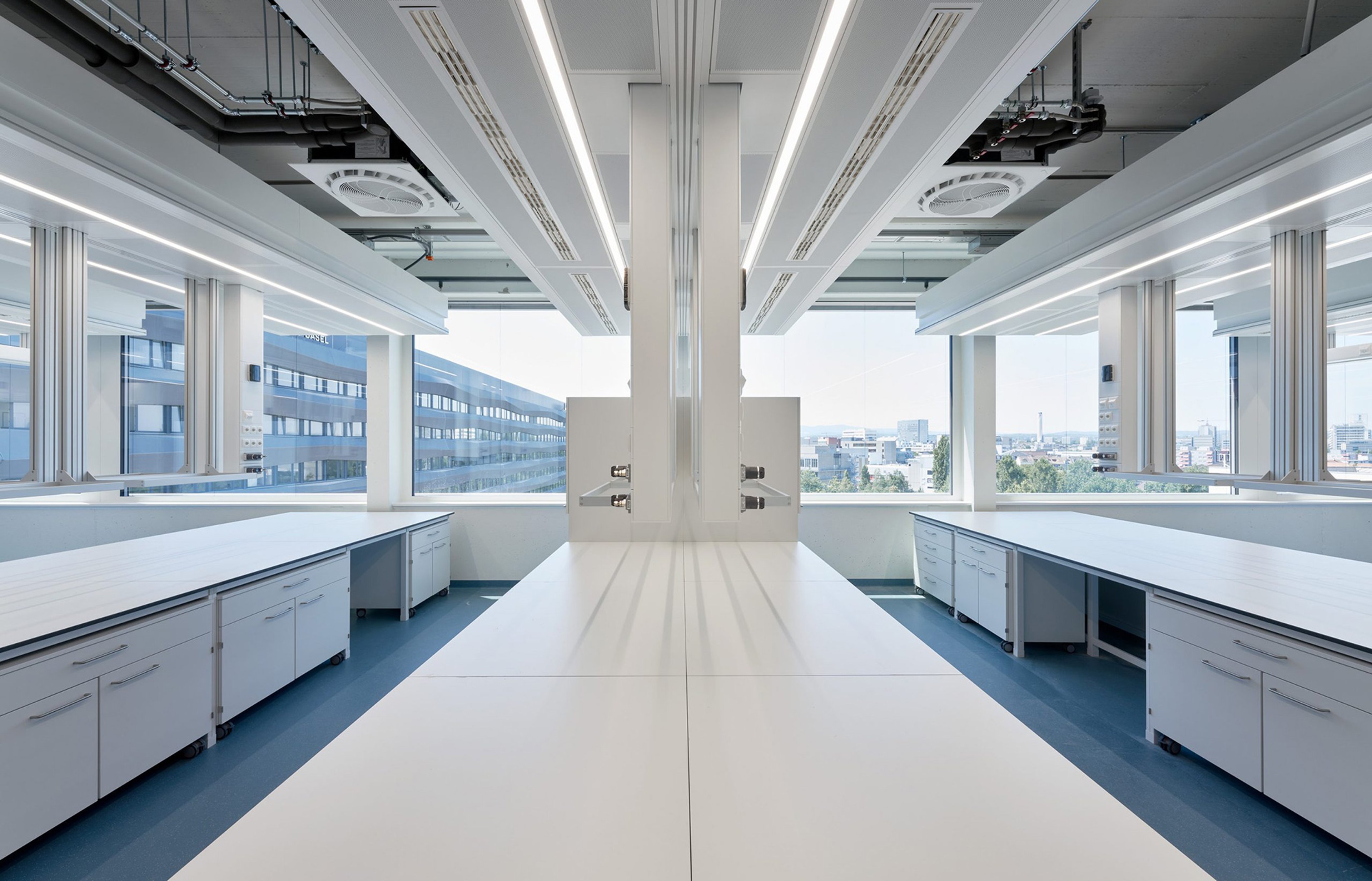

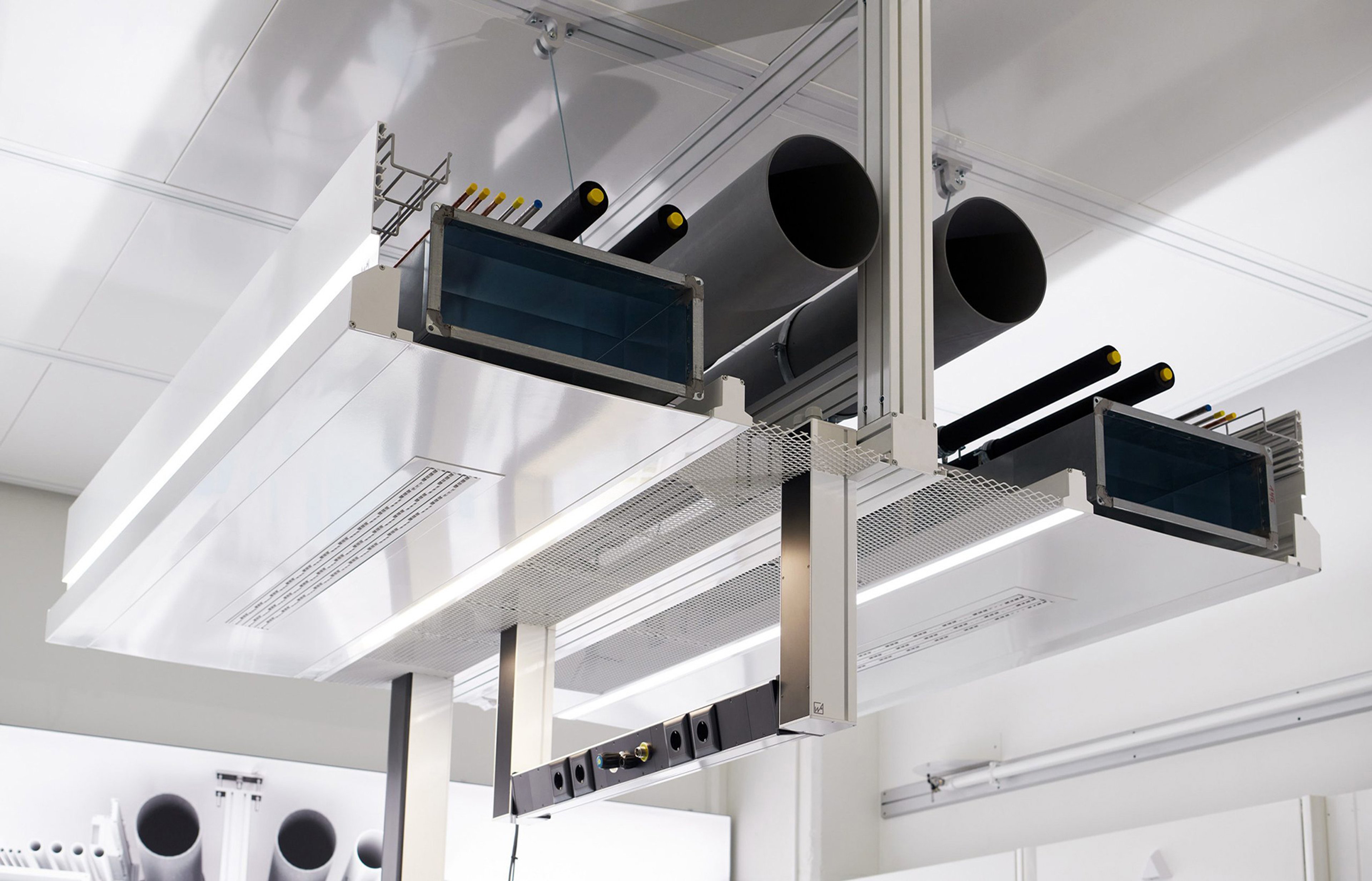

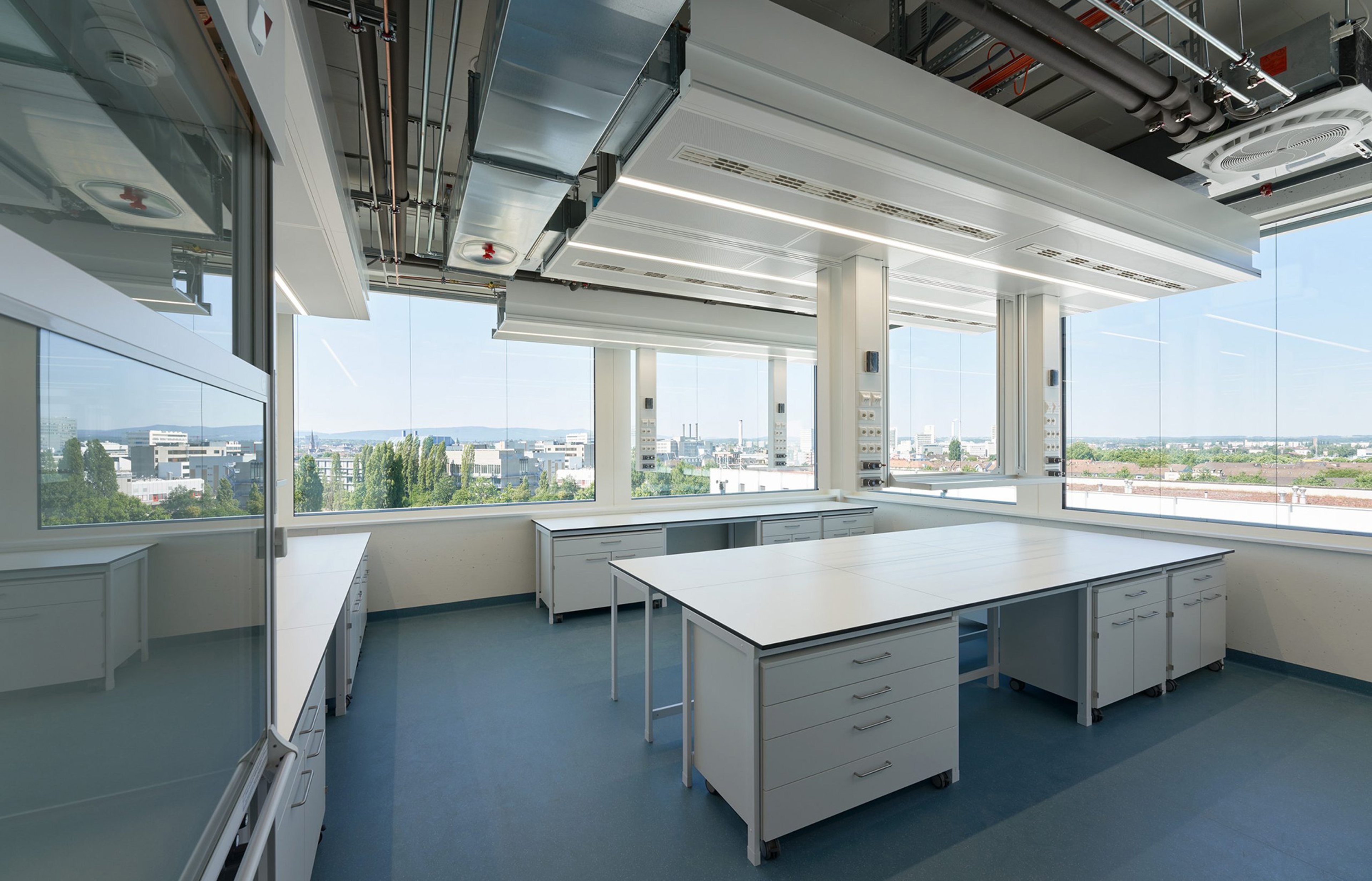

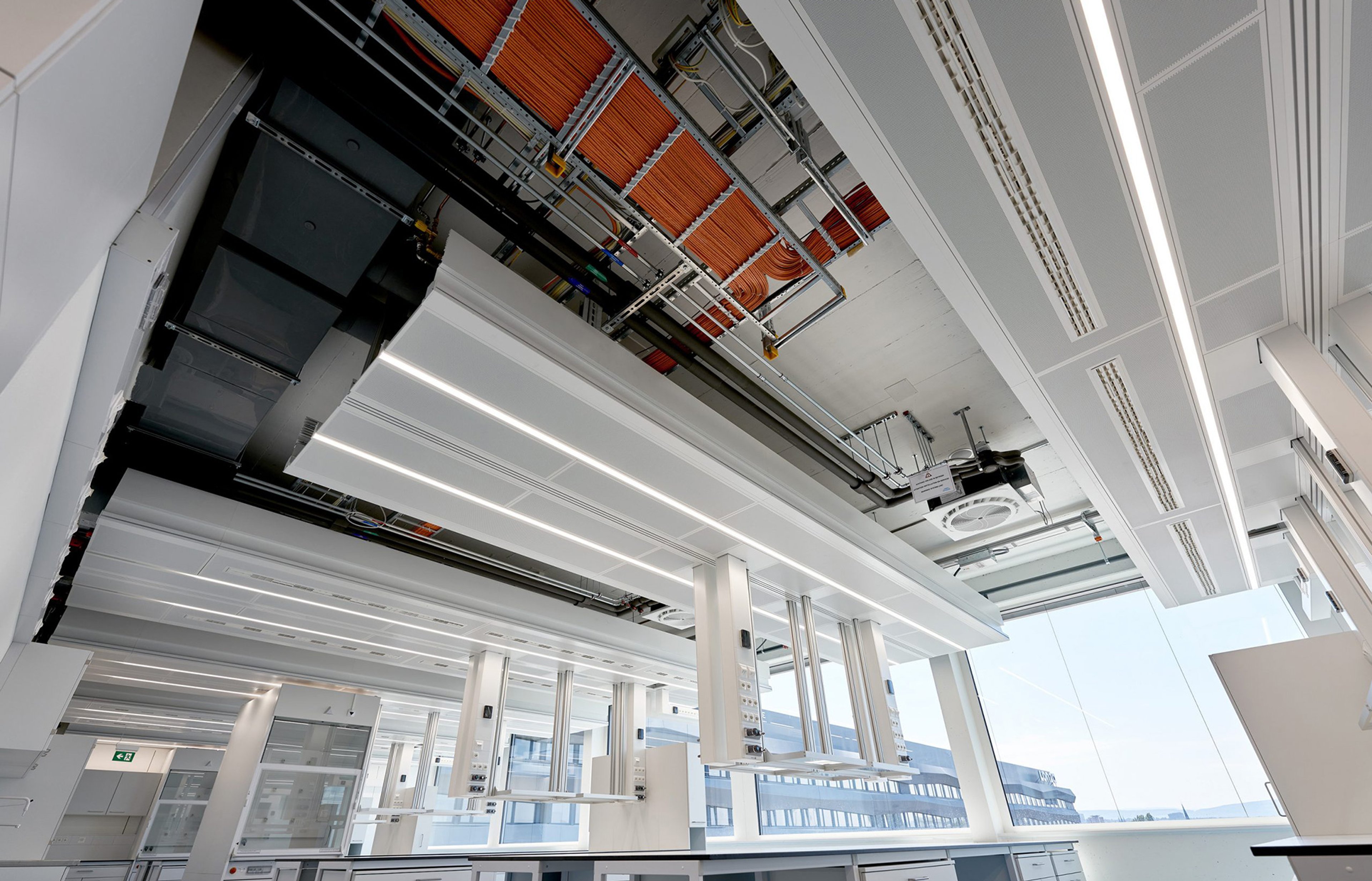

The Infrastructure Carrier Unit (ICU) is a modular system carrier that includes all necessary trades for technical room development. In detail, these are: ventilation and control components, electrical and cable tray installations, sanitary installations, lighting, and accommodation for media carriers (horizontal and vertical versions). The module is delivered and assembled in a prefabricated (prefab) construction. Due to its design, the infrastructure carrier unit can be used in any room concept. It enables a very flexible design of functional areas.
Dimensions
Element width
max. 2100 mm/ optional half-side version: max. 1100 m
Element length
2100 mm/ remaining lengths divisible according to room dimensions
Standard height bottom edge from floor
2800 – 3000 mm
Space requirement in installation height
at least 650 mm
Surface
Color
White RAL 9016, special colors according to NCS / RAL
Material
Basic support unit natural anodized aluminum E6-EV1
Components
Supply air
Room exhaust air
Process exhaust air
24h exhaust air
Direct lighting LED / 6000K, dimmable
Indirect lighting (optional) LED / 6000K, dimmable
Electrical (cables, power trays)
Sanitary
Gases
Expansion stages freely selectable, modularly expandable if required. All trades can be individually equipped or are delivered prefabricated.
Load capacity
Yoke
2000 N/m vertical
Installation components
750 N/m

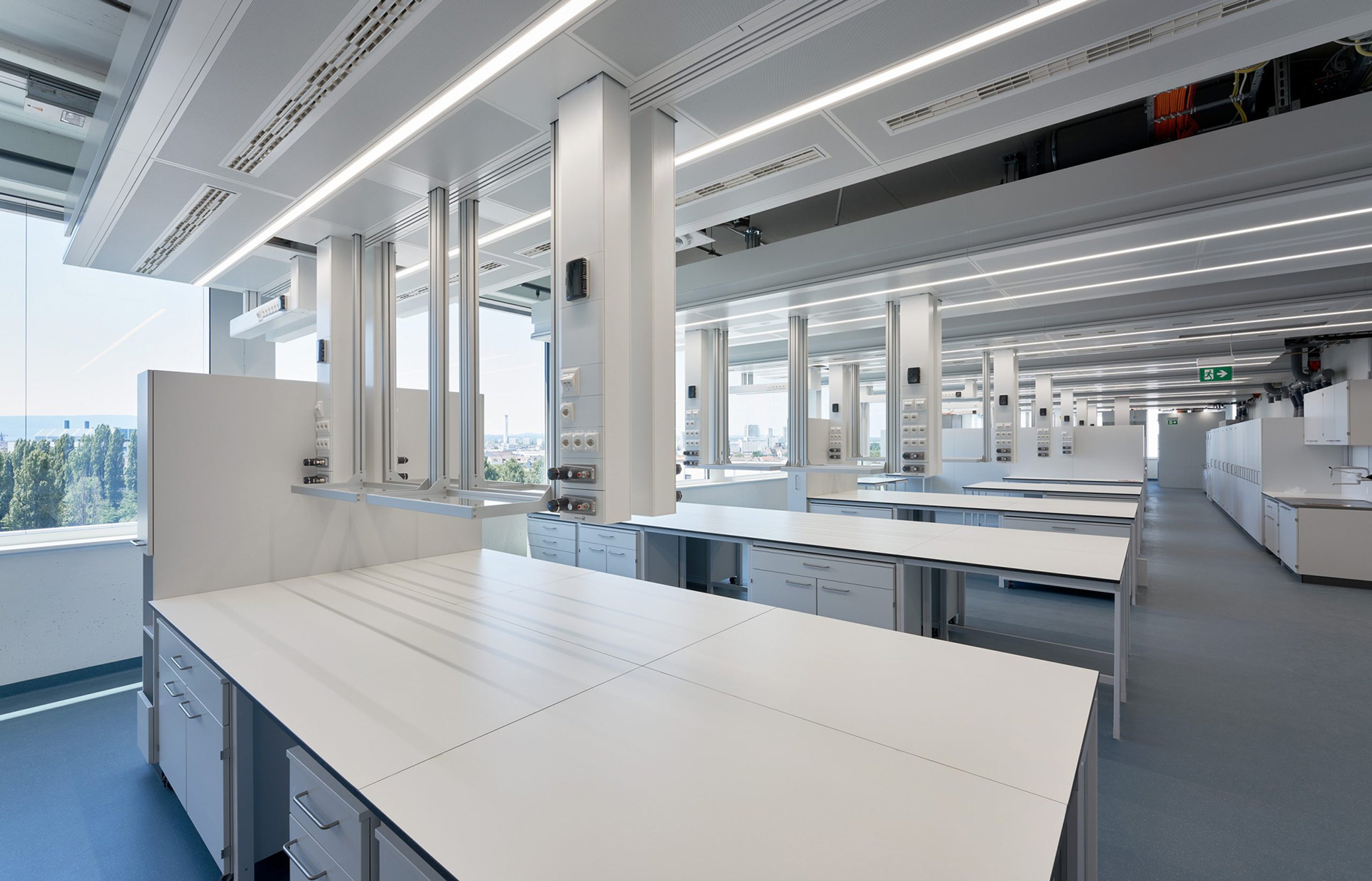

The Infrastructure Carrier Unit (ICU) is a unit oriented to building axes, independently mounted on the ceiling and partially covering the area, which provides the room with installation components such as supply and exhaust air, lighting, electrical and media installations.
It offers the possibility to mount common ceiling-mounted attachment components such as media carriers, shelves, wall cabinets, spot extractions, monitor and PC holders, swivel arms, etc. Additionally, the installation of partition walls and enclosures is prepared.

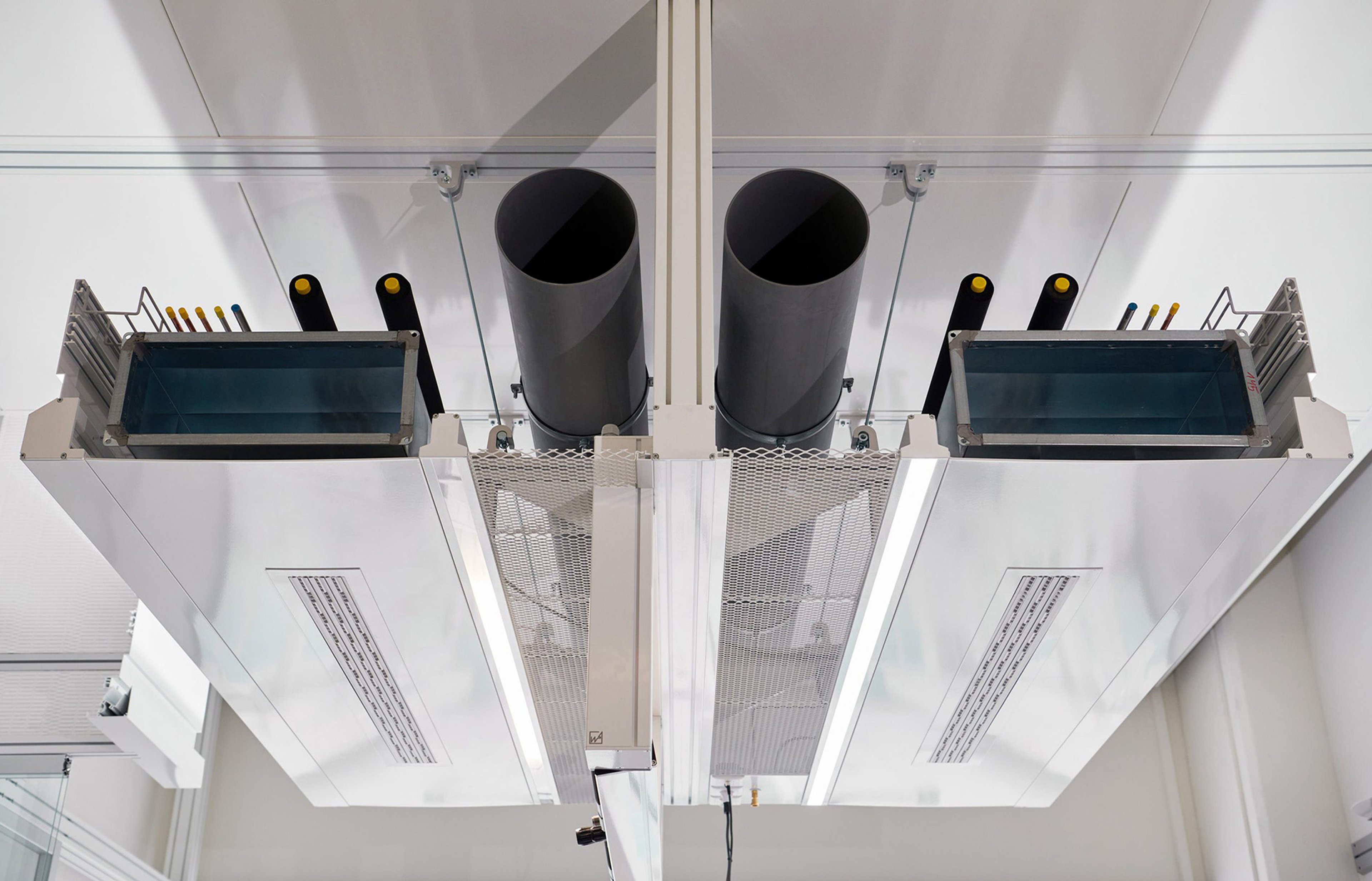

The infrastructure module is highly expandable. The basic component is a yoke support structure, which is mounted on the ceiling, adjustable and expandable. Installation components and attachment components are then mounted on it. A suspended, closed ceiling can be mounted independently of the infrastructure carrier unit on the building ceiling.
