Media Carriers
With technological advancements and new research fields, laboratory infrastructure is also growing. The flexibility of media supply is crucial here. The necessary tools for research are exactly where they are needed. The ideal solution: media technology supply from top to bottom.
Flexible media supply in the area
Laboratory infrastructure must meet the demands of researchers for decades – be it due to technological progress or the reorientation of the research field. In this context, the flexibility of media supply gains importance. Only then can researchers always find the necessary tools exactly where they are needed.

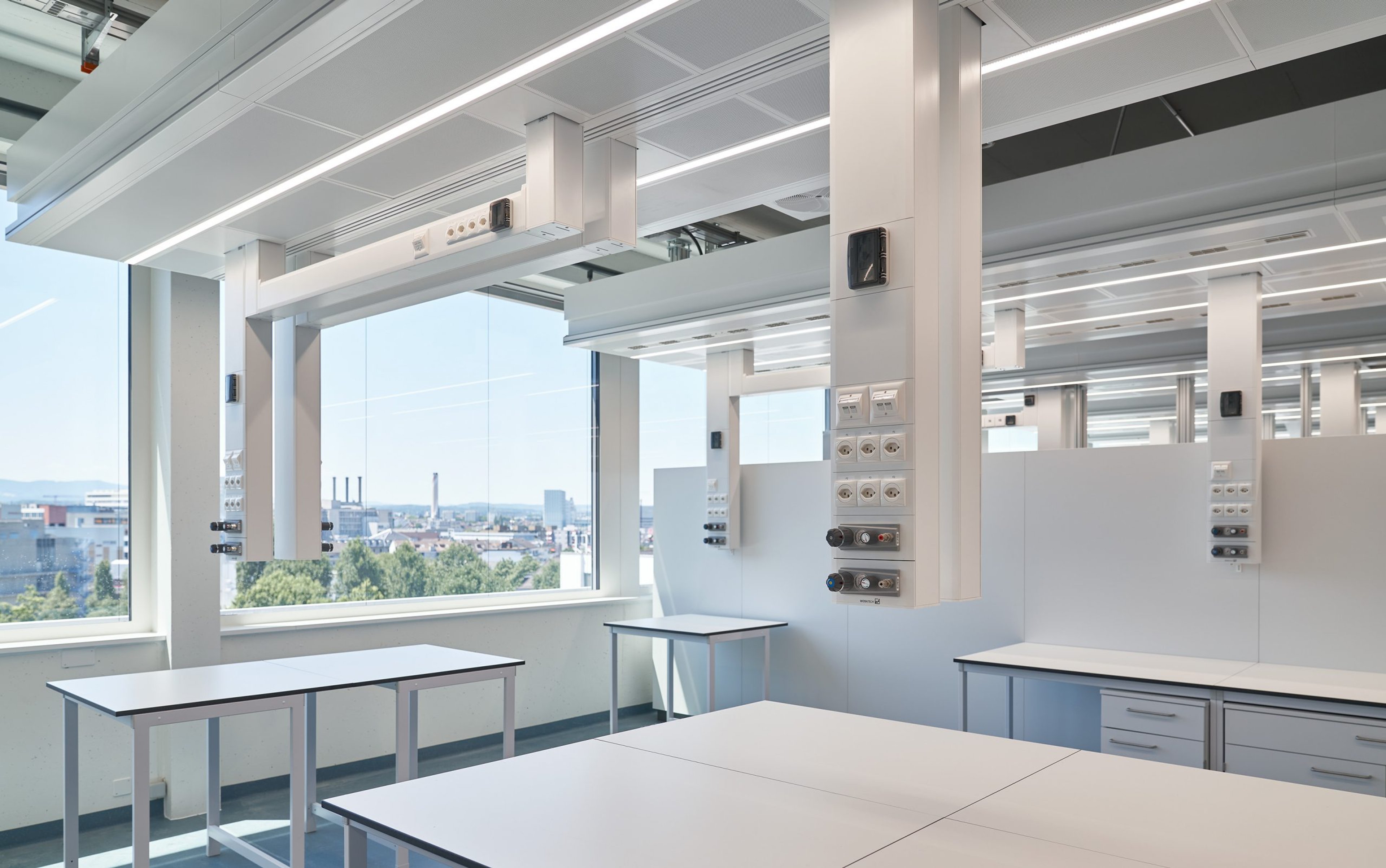

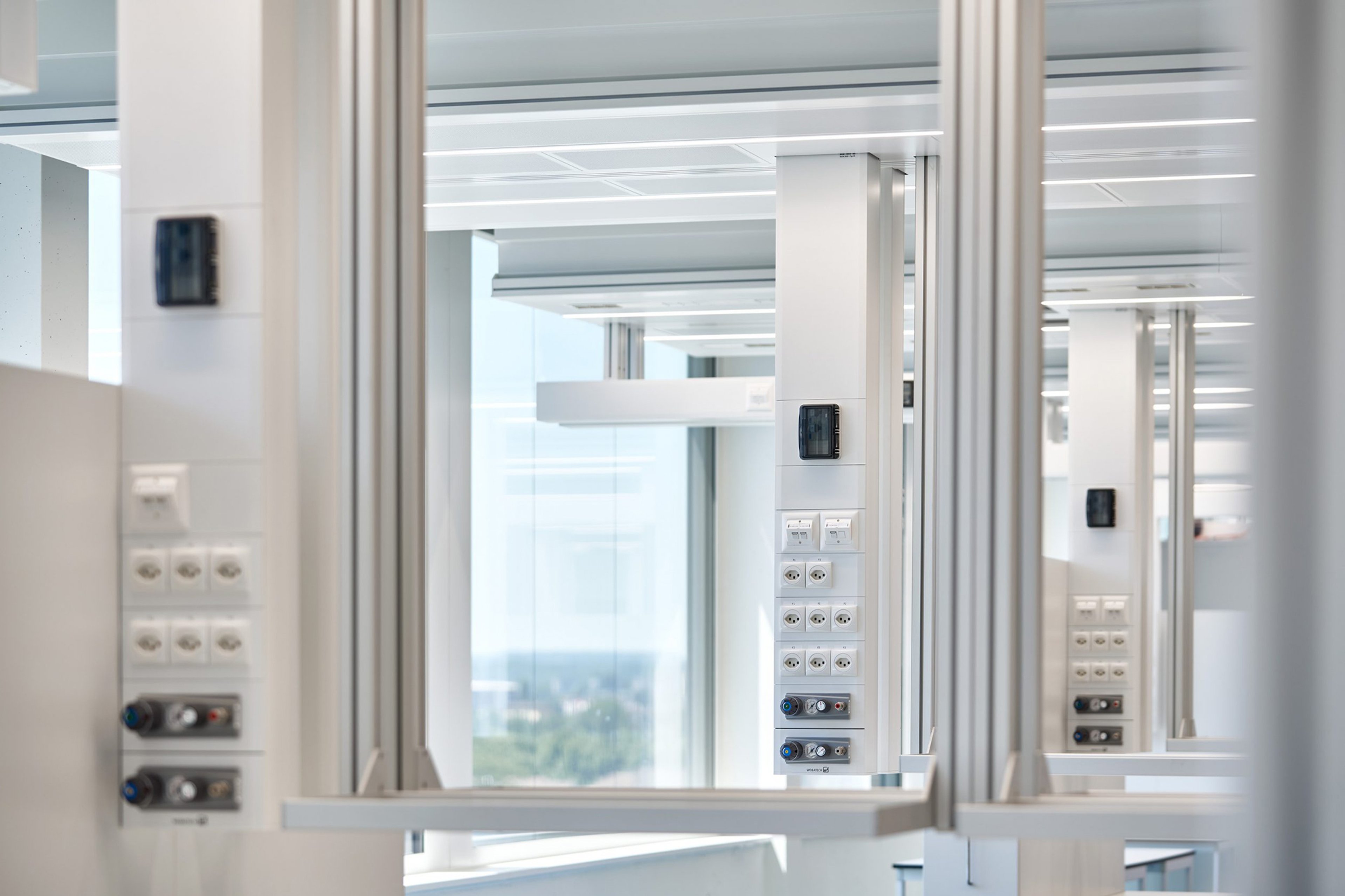

A media technology supply from the ceiling is ideal. Through media carriers attached to the ceiling, the necessary tools can be provided in a flexible and cost-efficient manner. These media carriers can be moved or removed as needed without requiring major reconstruction work.
With flexible media supply from the ceiling, you create a user-oriented infrastructure that adapts to the needs of your researchers and enables a future-proof laboratory in the long term.
Description
We are able to offer you a wide variety of designs: movable, foldable, mobile, attached to the wall, ceiling, or our ceiling systems. Freely choose your optimal dimensions, shapes, heights, materials, and configurations. Should your needs change – no problem. Thanks to our modular product portfolio, the allocation of media such as energy, data, sanitary, and gas can be changed or expanded at any time, even retrospectively.
To ensure the flexible and adaptable design of workspaces in laboratories, schools, or industry, we set no limits on your choices. Our media carriers are individually adapted to the user, thus optimizing the ergonomics of their workplace. They also impress with their high-quality, modern design.

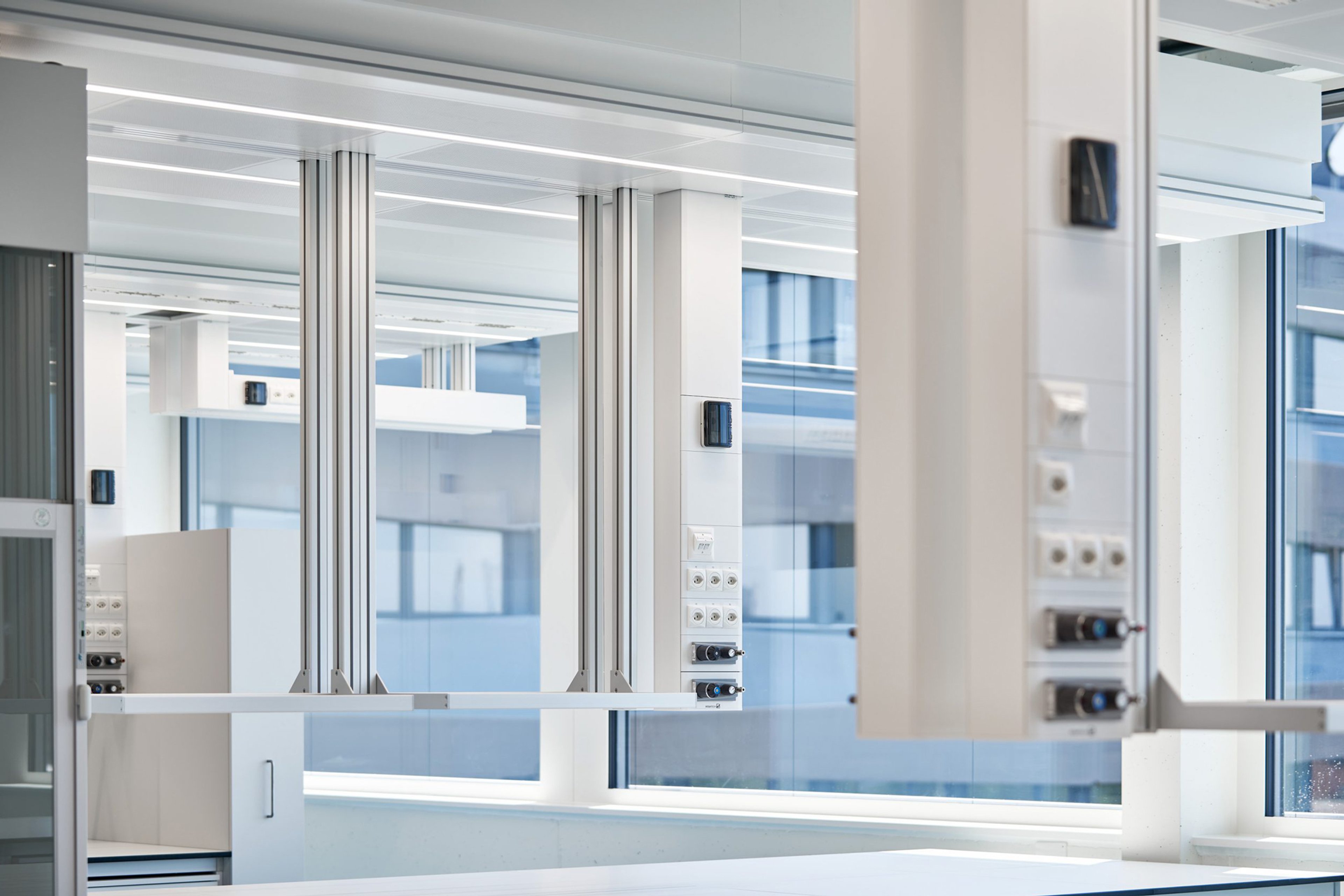

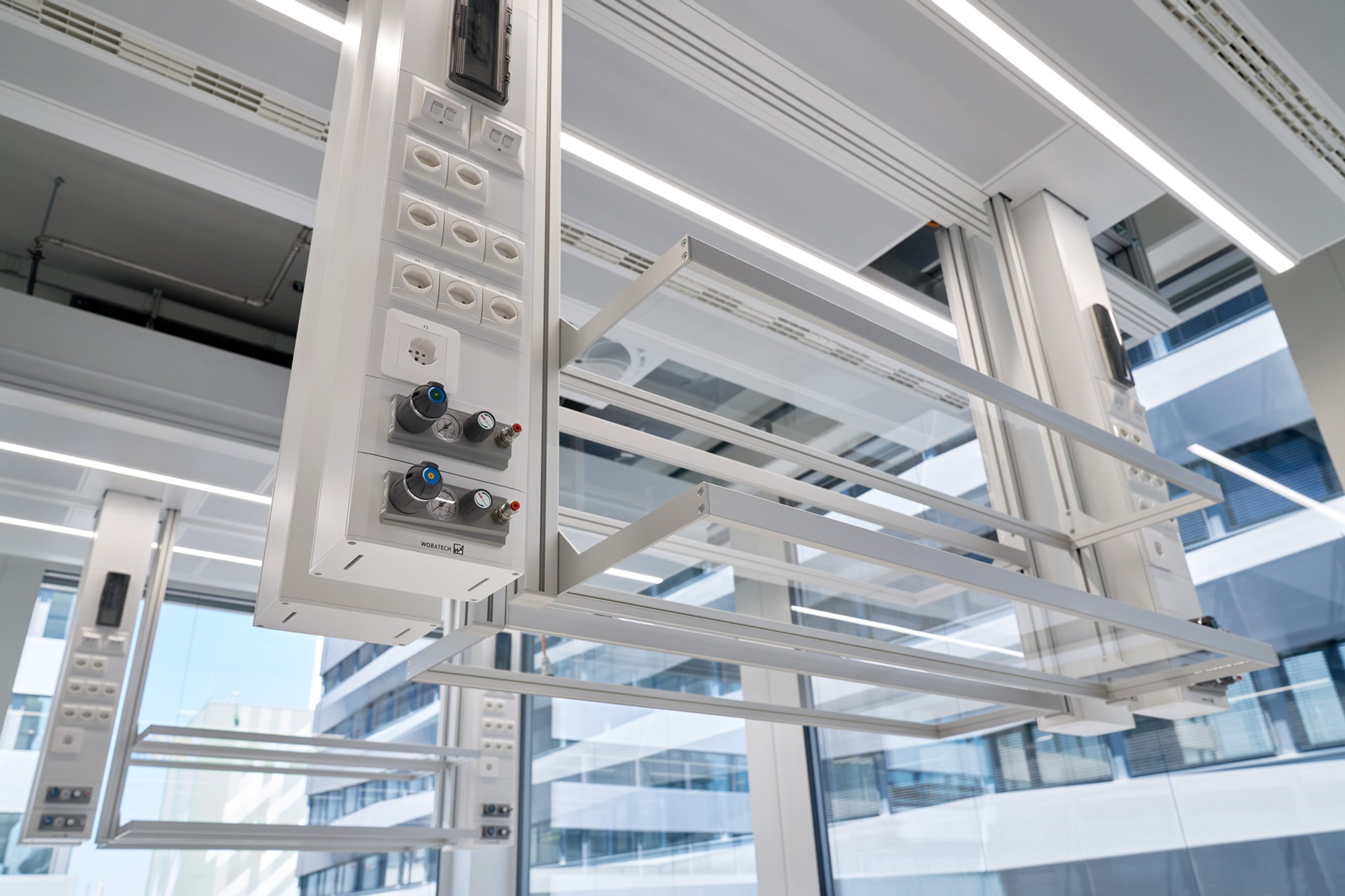

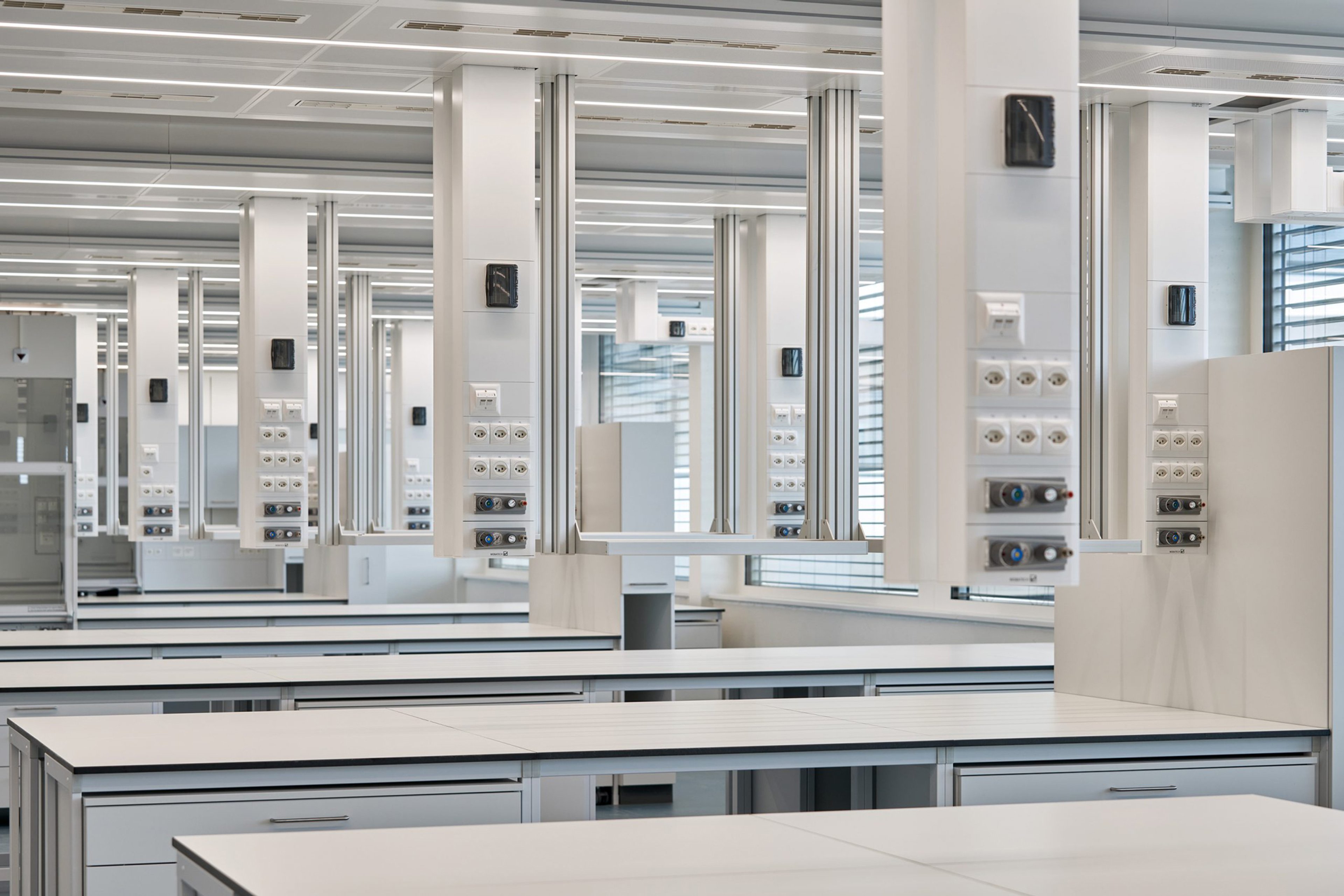

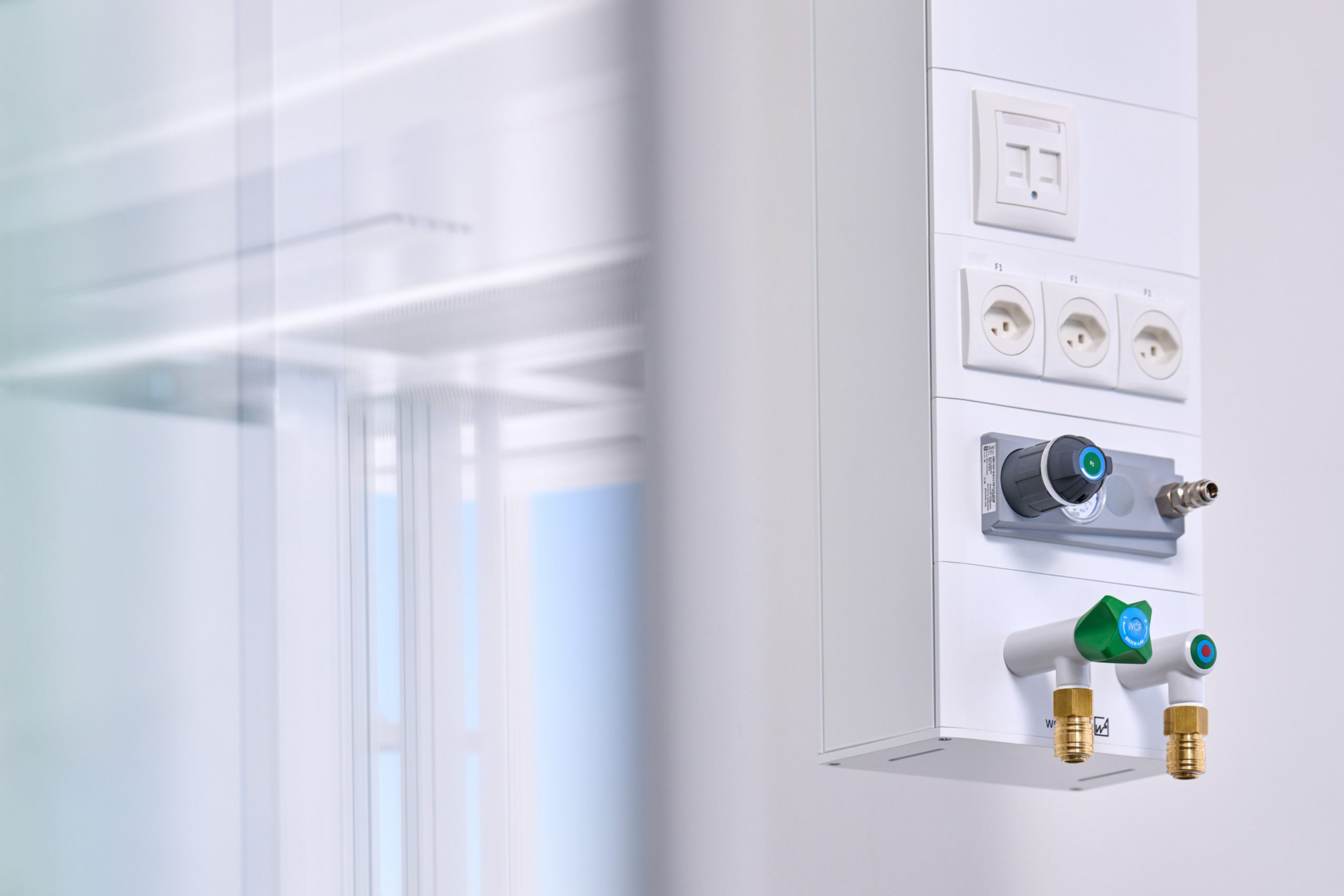

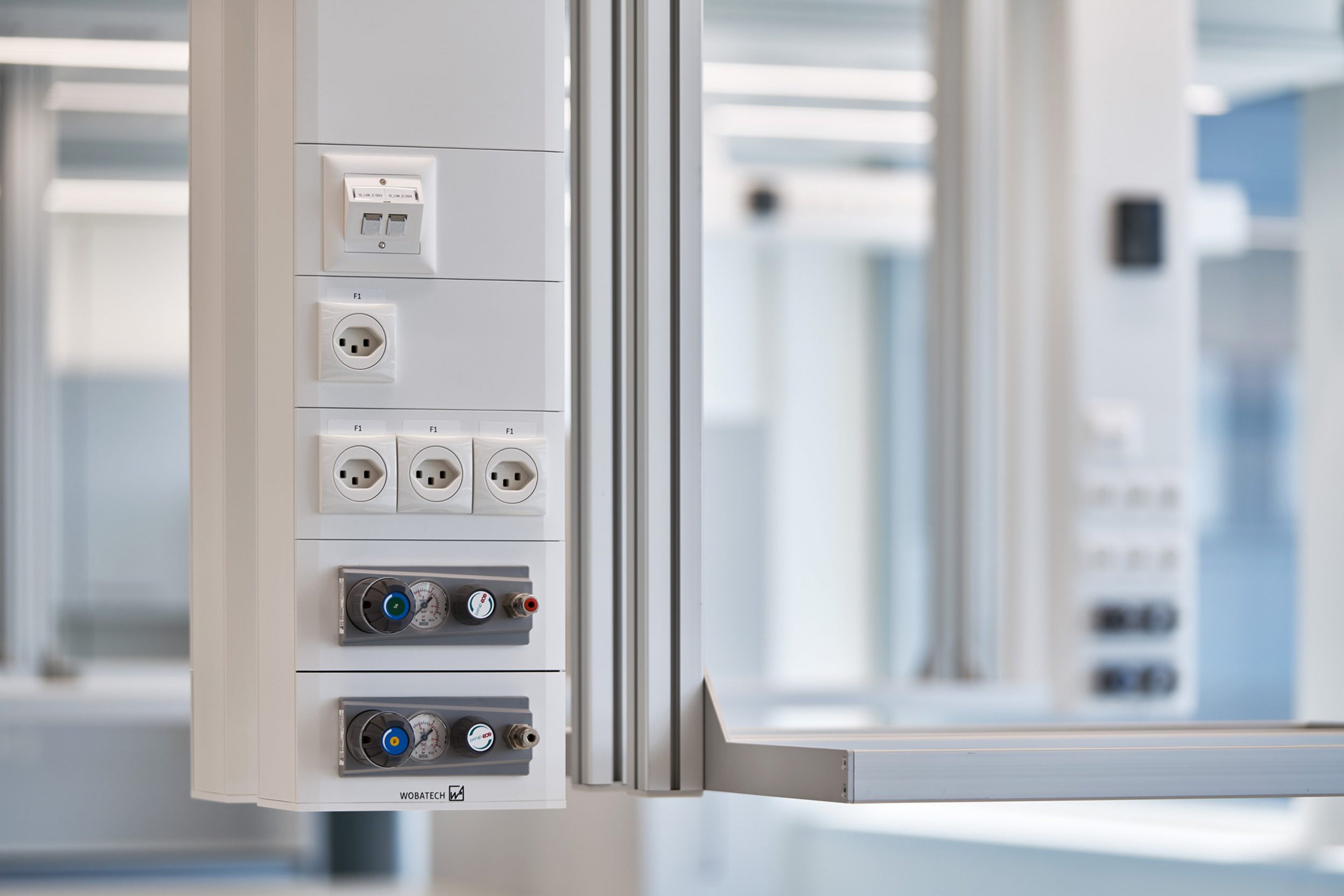

Product Features – Media Column
Options
- Choose up to 8 fields per column
- Electricity
- 3 sockets (6 plugs) per compartment as required
- Network/ IT
- RJ45 connections – single or double as required

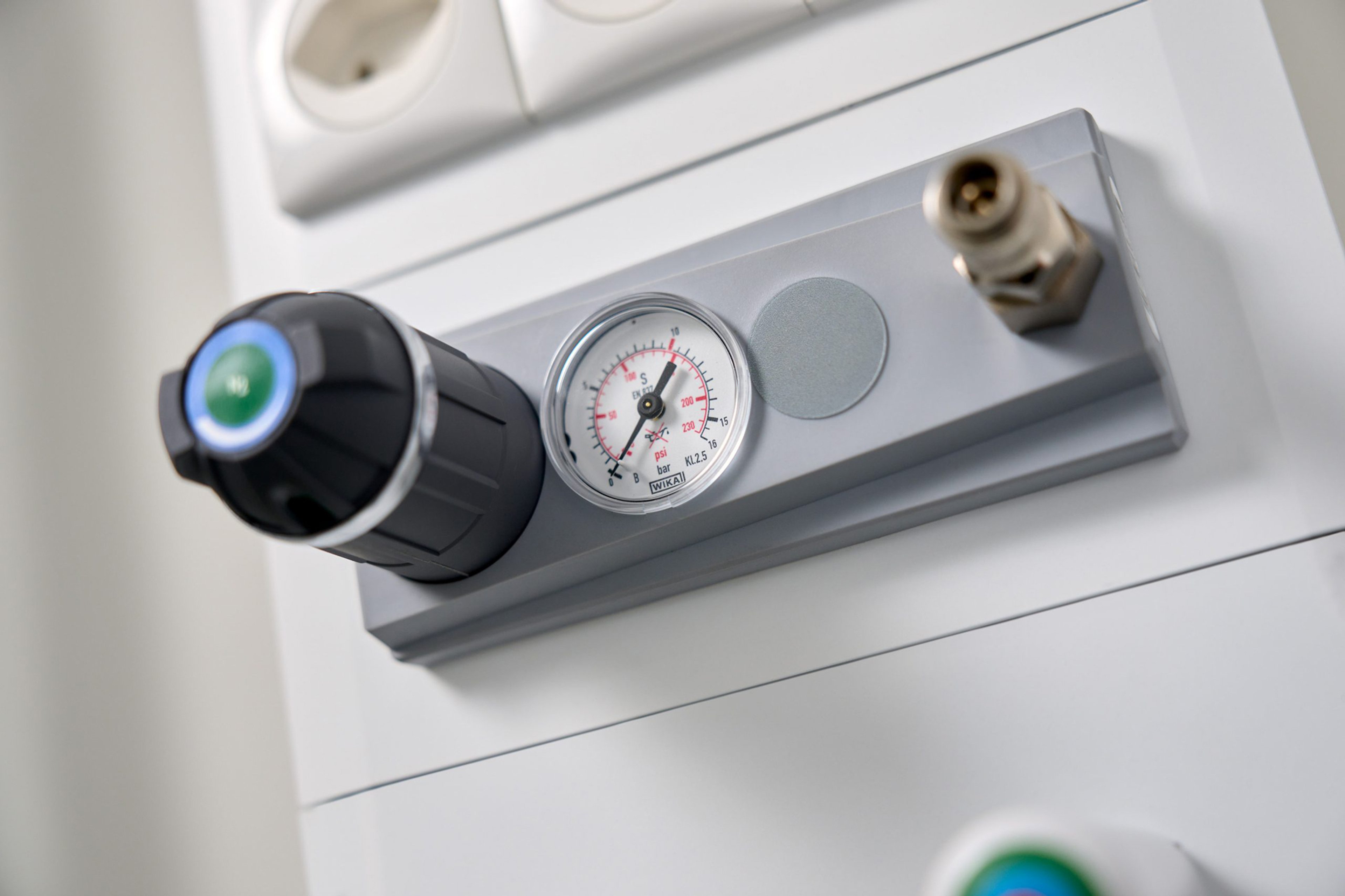

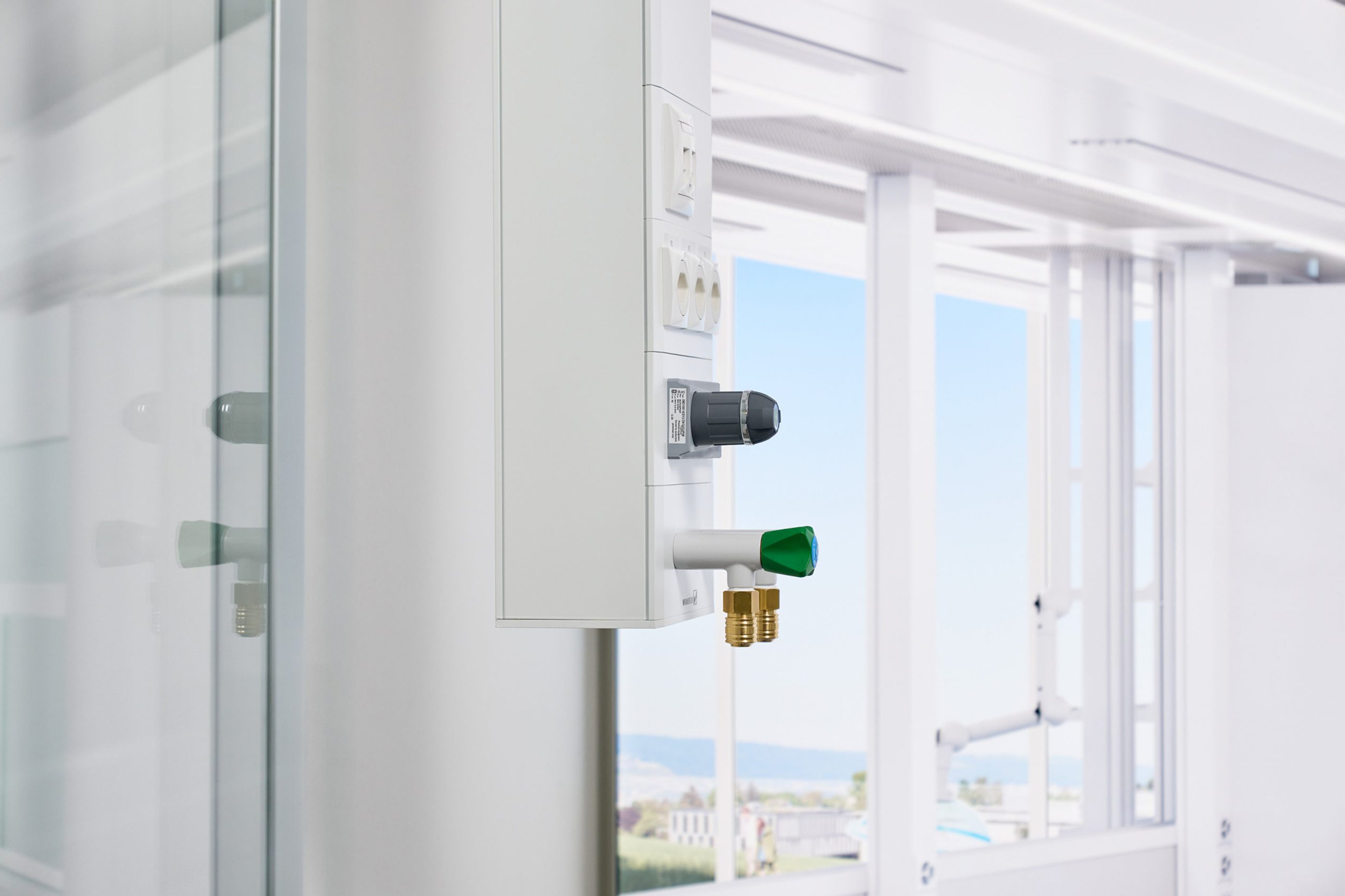

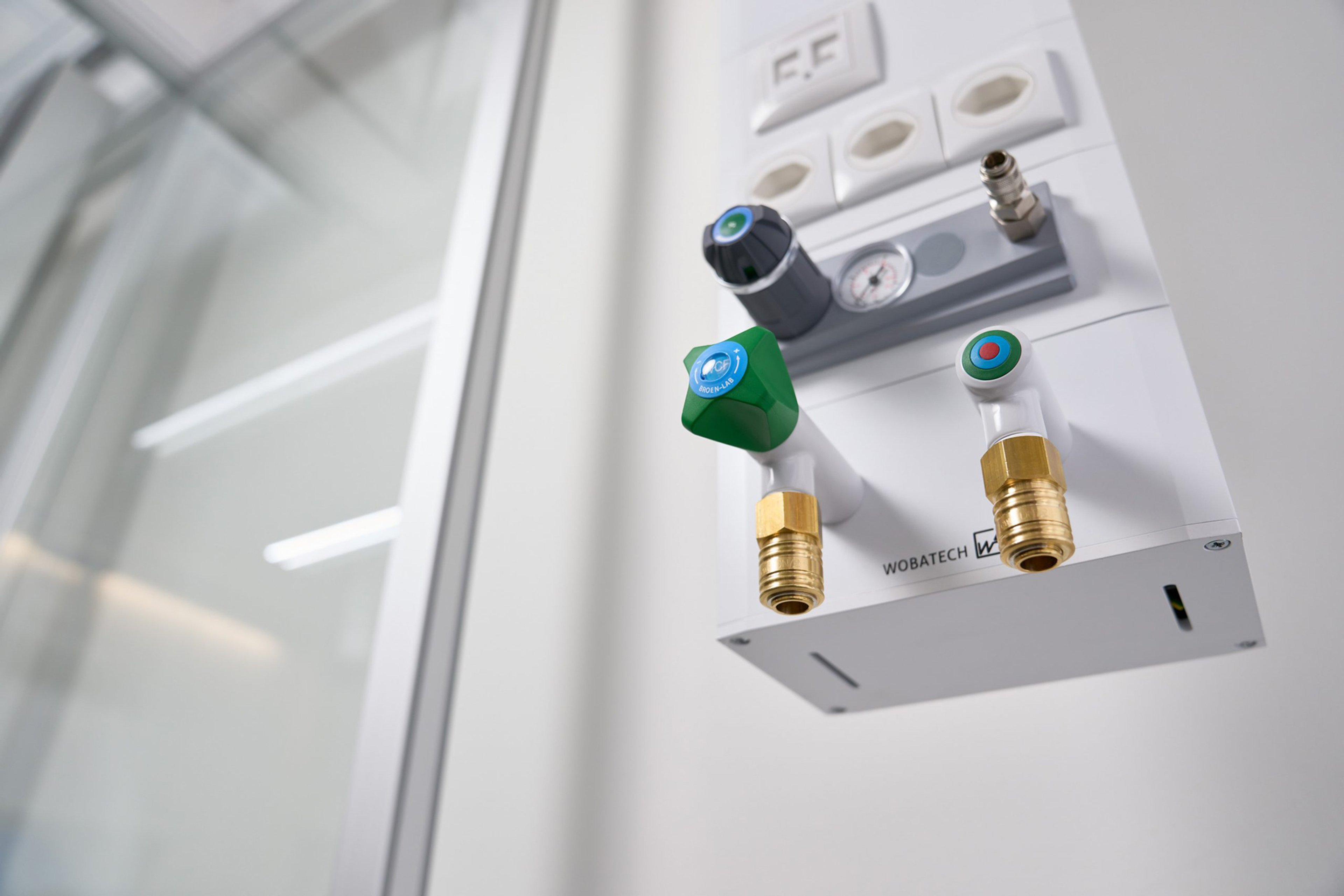

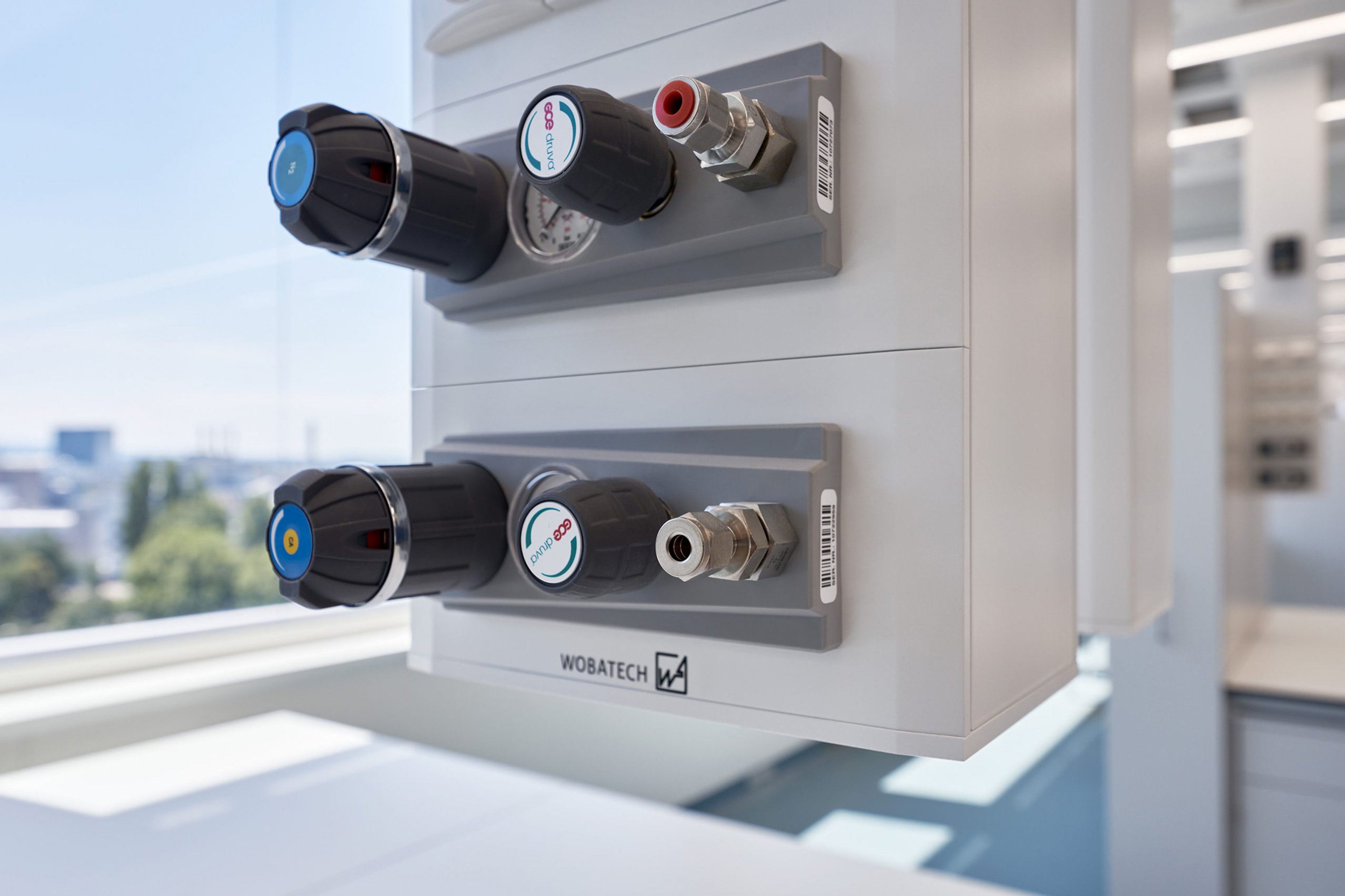

- Gases/ Air Supply
- Flammable gases up to a maximum gas purity of 6.0 (99.9999%)
- Compressed Air
- Vacuum
Additional Technical Features
- No visible screws
- Customizable
- Access panel for electricity/IT
- Two chambers within each column (gases are separated from electricity/ ICT)
- Available as static and movable column
Surface
- All RAL color options available
Product Features – Mobile Column
Options
- Choose up to 6 fields per column
- Electricity
- 1 socket (2 plugs) per compartment – as required
- Network/ IT
- RJ45 connections – single or double, or conduit only as required
- Gases/ Air Supply
- Flammable gases up to gas purity class 5 (99.999%)
- Compressed Air
- Vacuum
Additional Technical Features
- Access panel for electrical/IT
- Mobility radius of 1 m
- Rotatable joint
- Safety wire (stainless steel up to 2 m)
- Standard height 2 m
- Two chambers within each column (gases are separated from electricity/ICT)
Surface
- Color options for front and back panel: all RAL colors available
- Rollers, base plate and joint are always black
Optional Ceiling Connection Plate
- Self-closing coupling adapters for gases and all necessary connections
- Safety wire and support plate

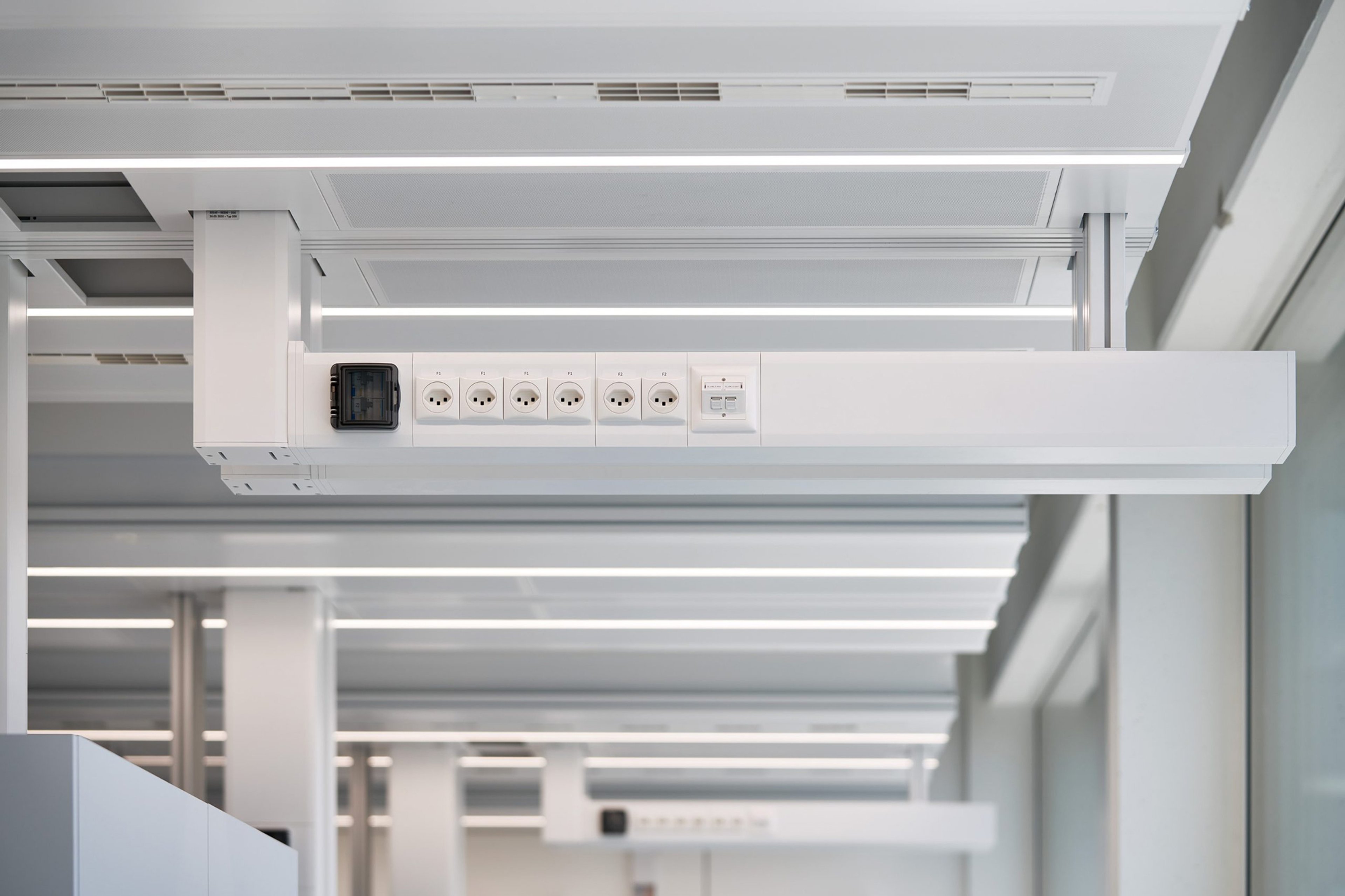

Product Features – IT + Electrical Unit
The WOBATECH IT+ELECTRICAL UNIT offers flexible power and communication supply anywhere in the room. The modular design allows for individual media connections and sockets. Flexible expansion options enable positioning on and at tables, on grids, ceiling yokes, and as a mobile solution, a movable column with a rotatable supply unit.

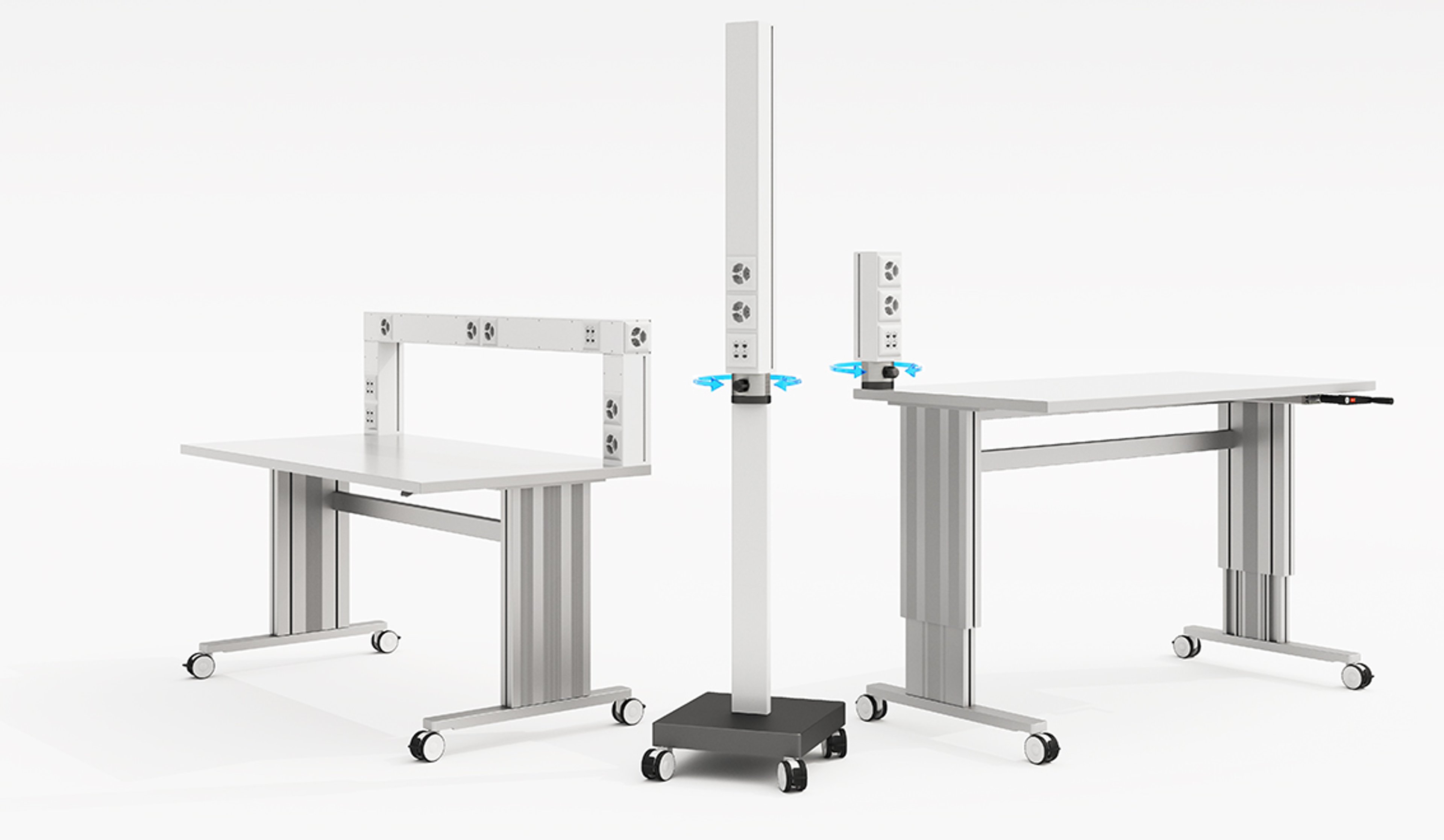

Expansion Versions
- Tabletop setup with bridge
- Table column
- Mobile column
- Ceiling column

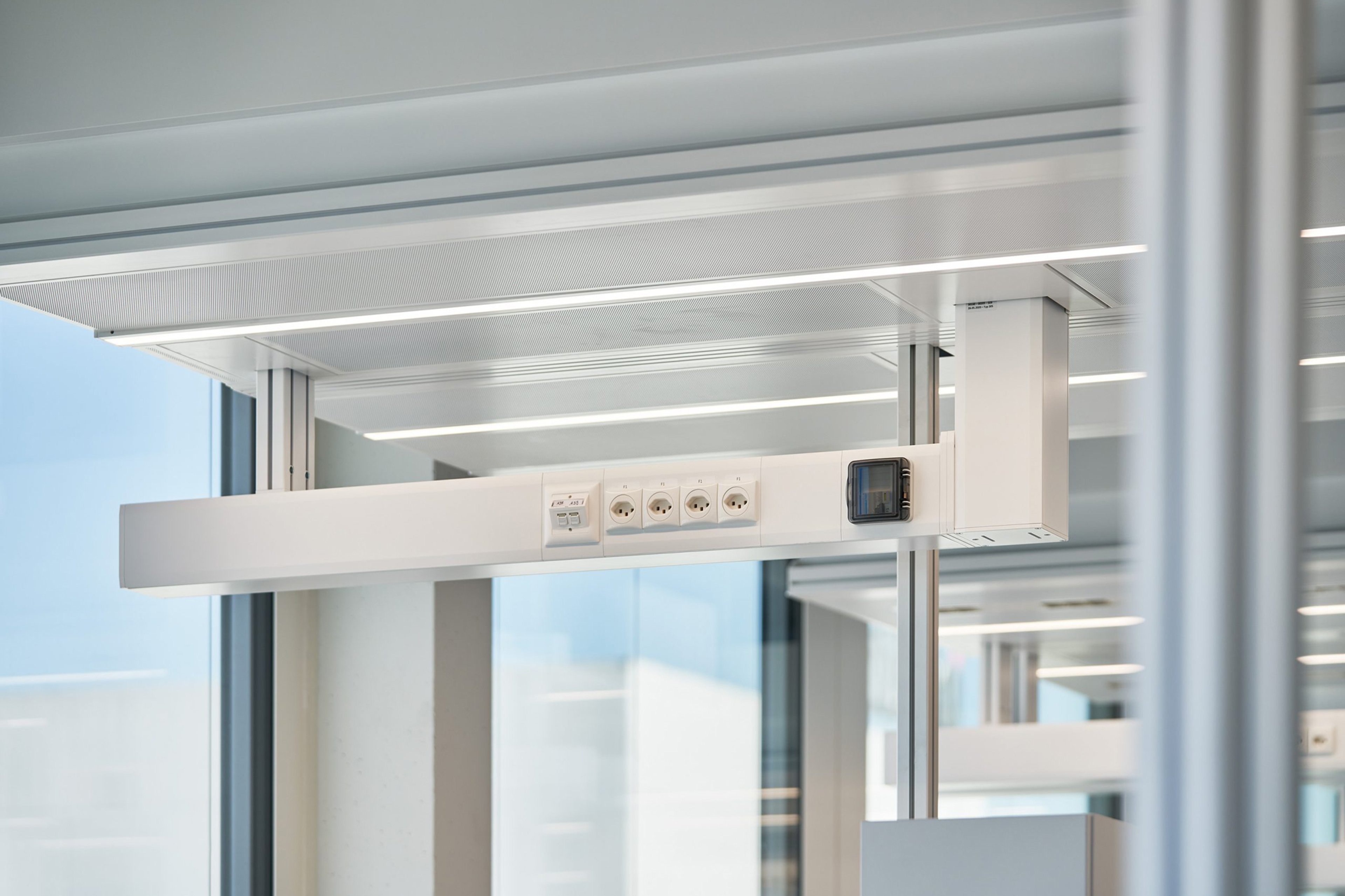

- Media bridge
The mobile column and table column offer a 360° rotatable media unit with optimal accessibility to connections.
Type of Media
- Electrical sockets
- IT
- Junction boxes
- Lighting media on request
Media Supply
Supply via ceiling or wall
Surface
Powder-coated in various RAL or NCS colors, clear anodized.
Assembly
Assembly is carried out by your or our own assembly team. The construction can be expanded using the WOBATECH connection system. Subsequent occupancy is easily possible at any time.
