Front Sliders for Fume Hoods
Our optimized sashes for fume hood systems are the result of our experience in laboratory practice. Whether mechanical, semi-electronic, or fully automated. Upon request, we also supply controls and motion detectors. Our flexible, modular system simplifies connection. For every laboratory.
Fume Hood Sashes for Your Requirements
We manufacture your fume hood sashes according to your specifications. Our modular design allows for easy connection to any fume hood system.
Description
We have years of accumulated experience in the development and manufacturing of sashes for fume hood systems. Whether mechanical, semi-electronic, or fully automated – our sashes are designed to fully and individually meet our customers' requirements.
Upon request, we can also supply controls and motion detectors. Our flexible, modular system makes connection very easy. Explain your application to us, and we will find the right solution for you.
Product Features

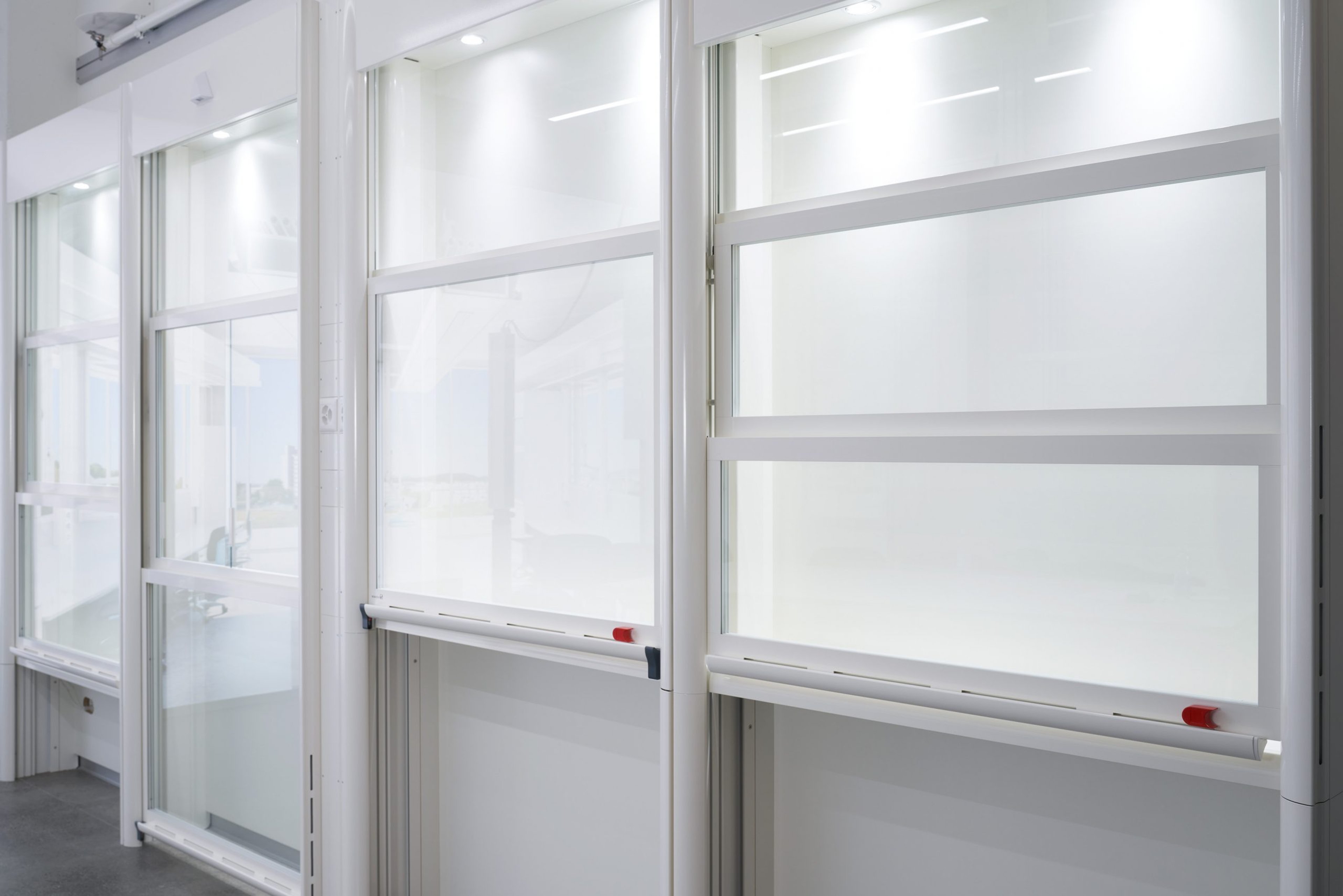

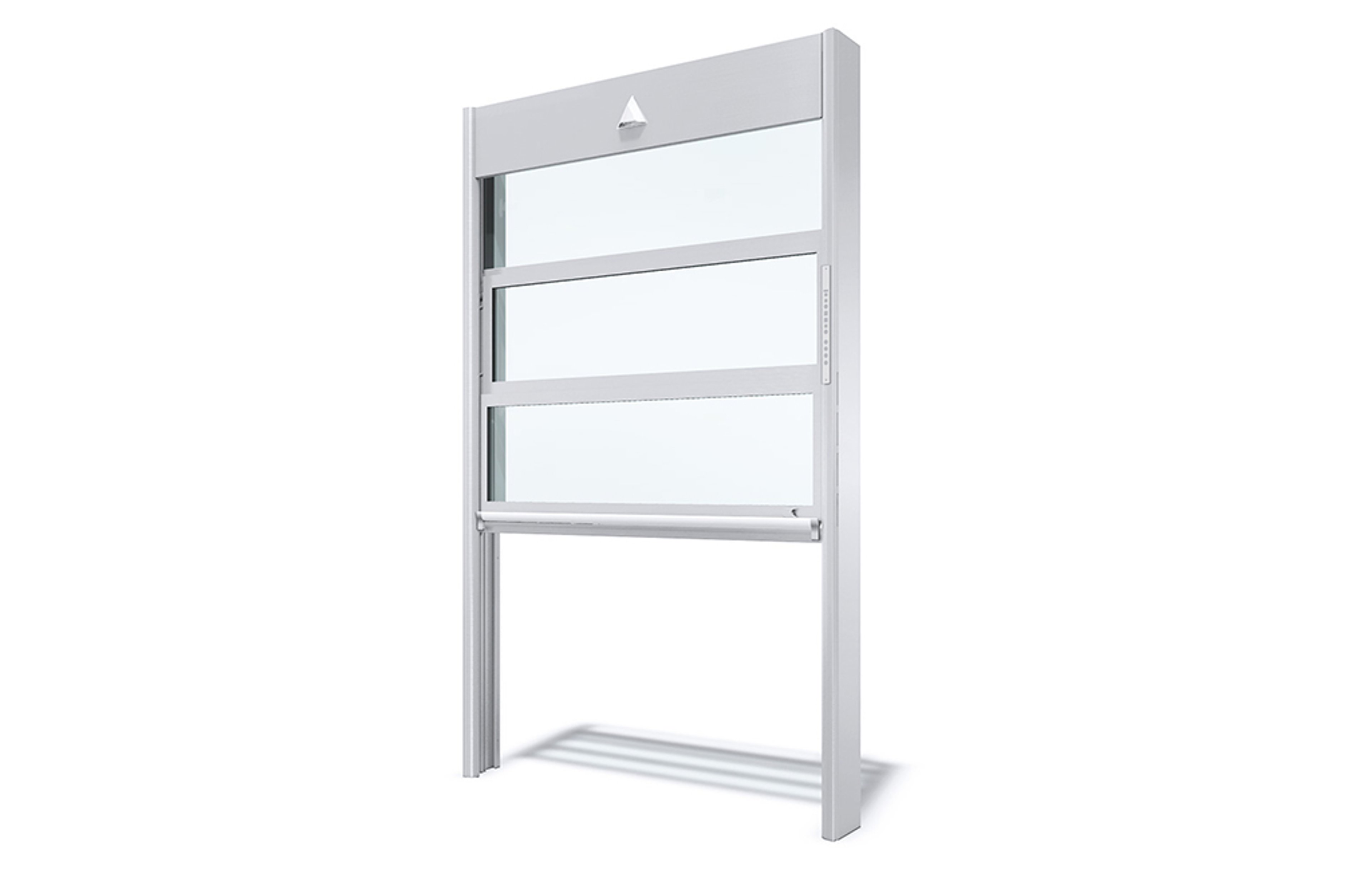

The sash can be designed as a bench-mounted, floor-mounted, or low-height version. The clear headroom is always at least 1800 mm from the floor. The sash is a closed system, meaning the counterweights are built-in, and the sash is assembled, adjusted, and tested at the factory. There are various connection types for the sash to the factory-made side walls. The flexible, modular system makes connection very easy. The factory-made side walls and the back wall with the roof can be assembled without the sash. All media can also be installed beforehand. The sash is only installed after the installations are complete.

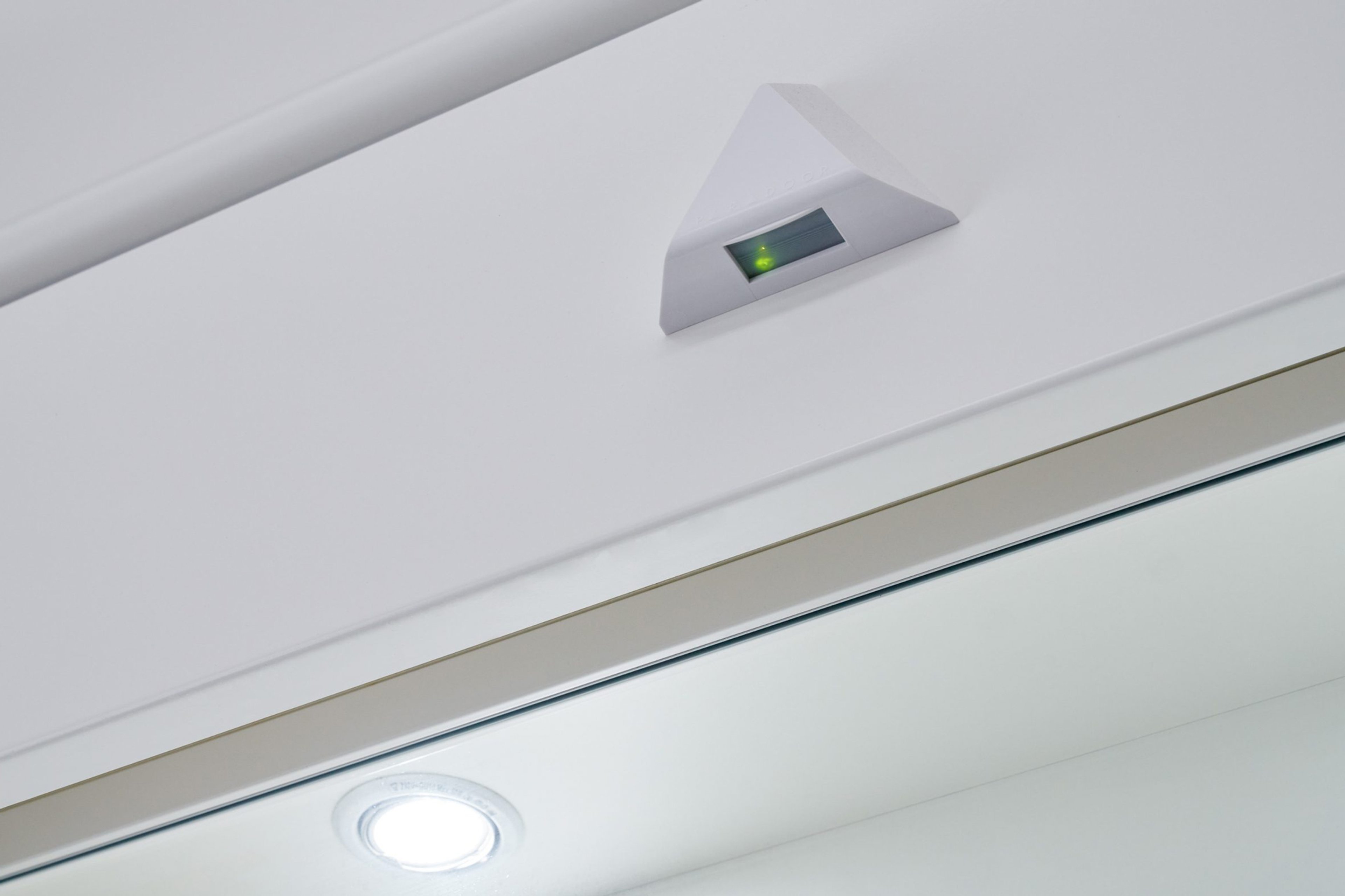

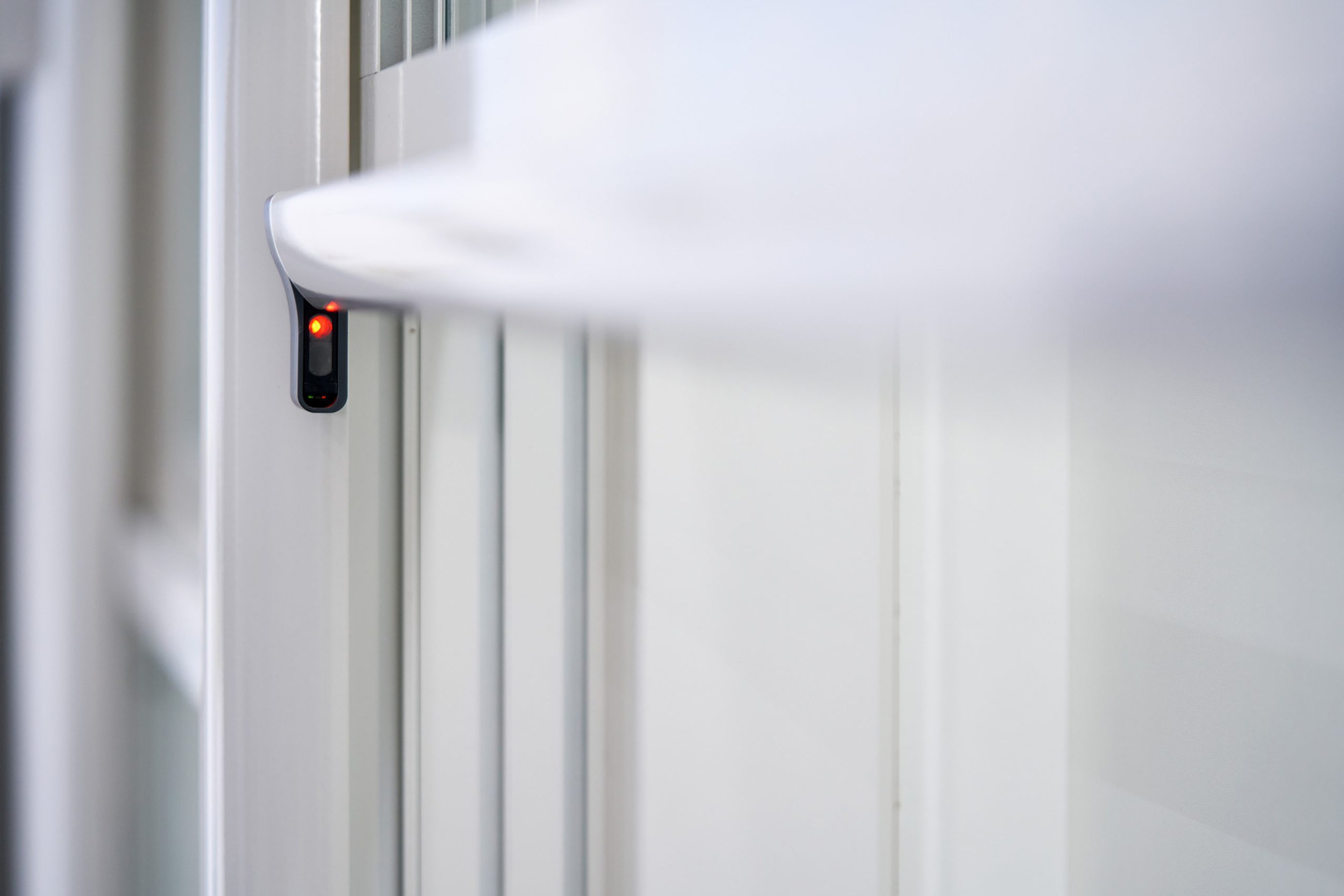

Upon request, an automatic closing system can be installed. The corresponding control unit is included. The closing system is fully integrated and tested in the sash. It operates independently of the exhaust air control. A motion detector and a light barrier built into the handle monitor the system.

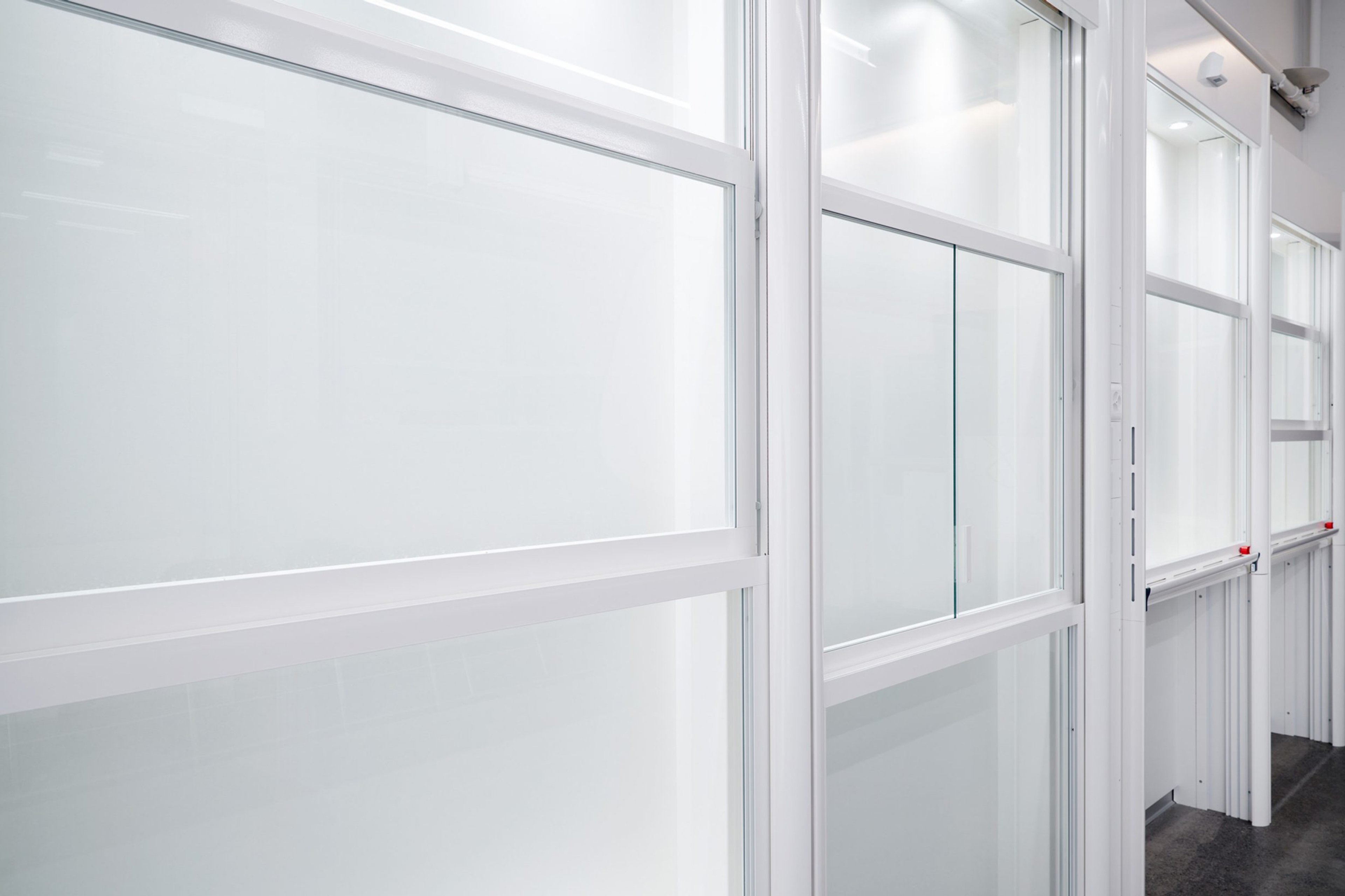

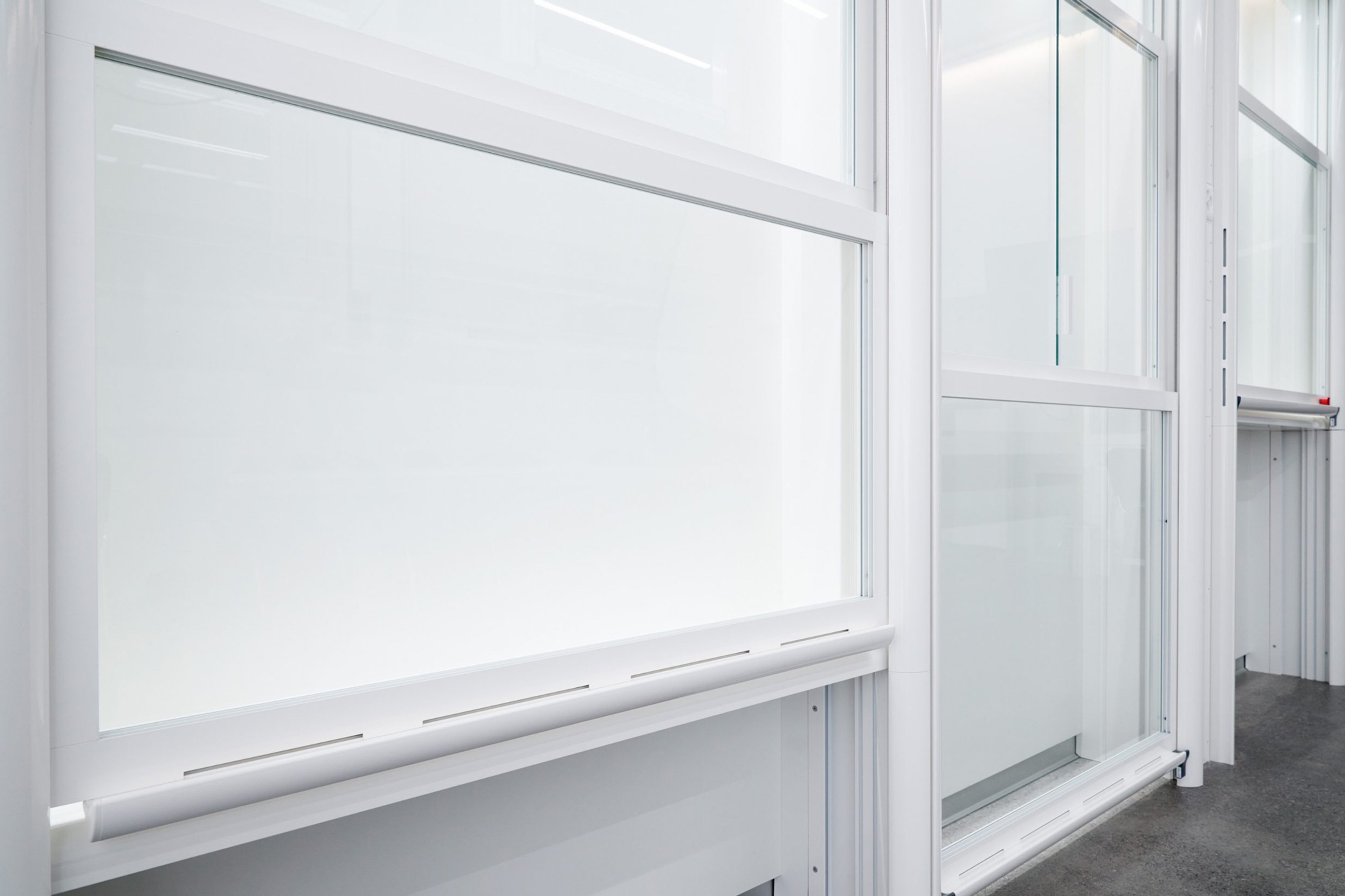

Horizontal cross sashes can also be installed in the main sash. Depending on the width of the main sash, these can be designed with 2 or 3 movable panes. The panes slide in grey PP profiles. With additional active air, the extraction capacity can be reduced to approx. 300 m3/h (per linear meter of sash width). The active air is blown in through an additional fan via the sides and over the bench profile.
Design
TA: Fume hood frame for bench-mounted fume hoods with single sash
BA: Fume hood frame for floor-mounted fume hoods with telescopic sash
NIA: Fume hood frame for low-height fume hoods with telescopic sash
Dimensions
Standard Width: 1200, 1500, 1800, 2100 mm
Special Width: up to max. 2600 mm
Standard Height: 2400, 2600 mm
Special Height: no restriction
Safety Glass
- ESG Single-pane safety glass
- VSG Laminated safety glass
Installation
- Sash pre-assembled (except BA)
- Final assembly easy and quick, directly on site
Packaging
- Wooden crates, palletized
Color
- Powder-coated aluminum profiles in various colors (RAL + NCS)
- Special epoxy color – highly acid-resistant
Stop 500 mm
- Opening height stage 1, 500 mm, according to EN 14175
- Opening height stage 2, headroom 1800 mm above floor
Options
- Automatic sash closing, 230 V (incl. light barrier, motion detector, motor, control, fully assembled)
- Automatic sash opening, 230 V (incl. light barrier, motion detector, motor, control, fully assembled)
- Cross sash 2- or 3-fold incl. handles
- Active Air
- Explosion Protection
